INTELLIGENT KEY INTERLOCK FUNCTION : Component Parts Location

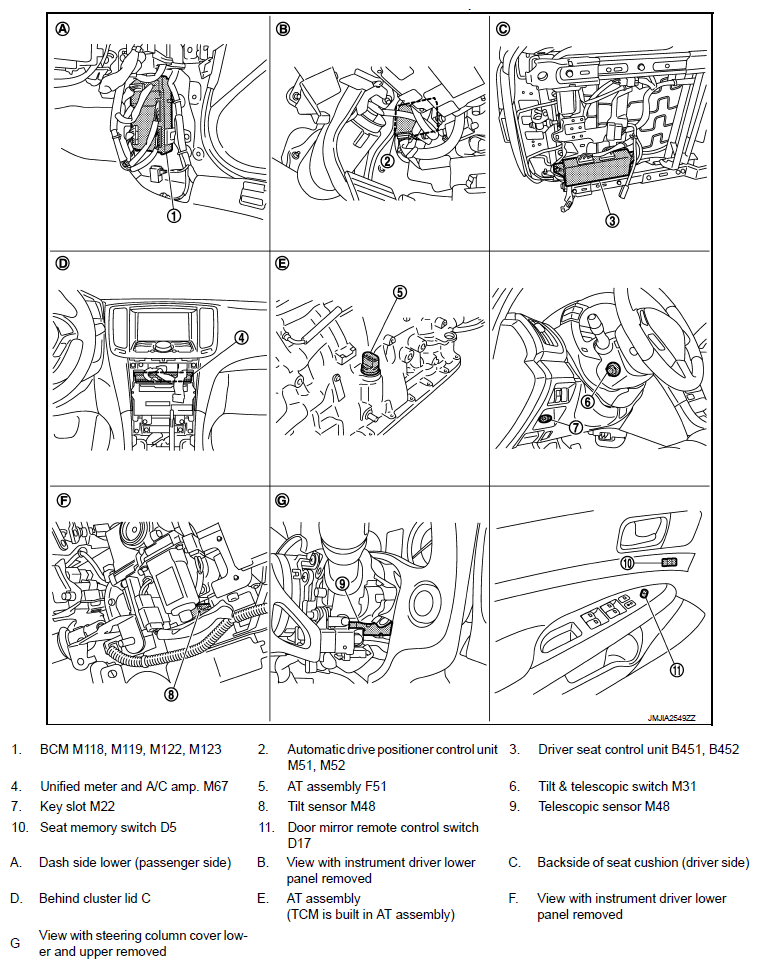

Fig 1: Identifying Intelligent Key Interlock Function Components Location (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

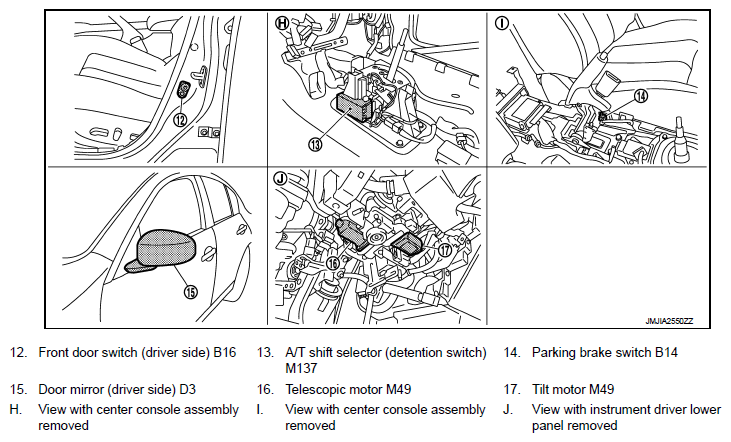

Fig 2: Identifying Intelligent Key Interlock Function Components Location (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

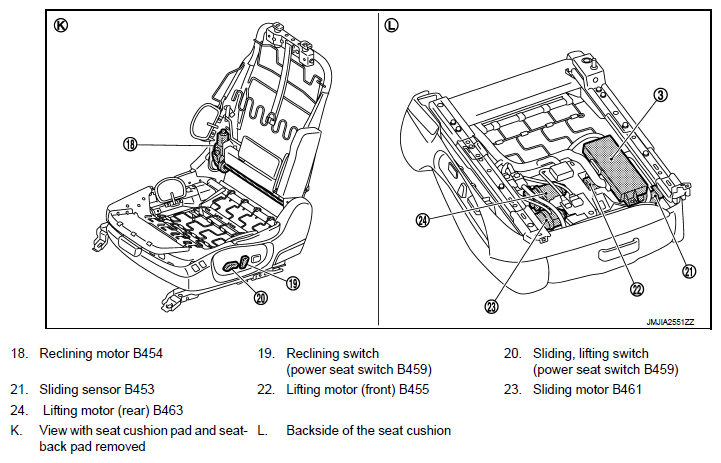

Fig 3: Identifying Intelligent Key Interlock Function Components Location (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
