Operation And Display

ICC Steering Switch

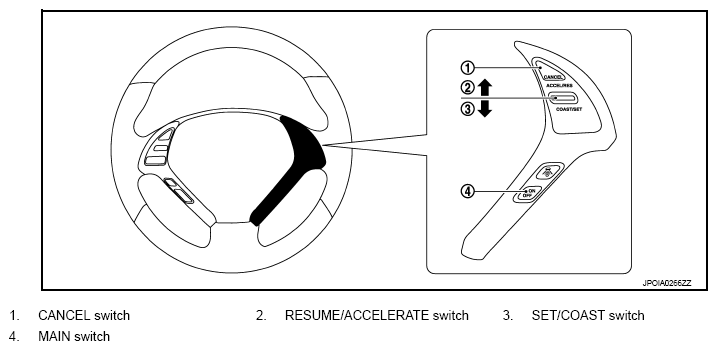

Fig 1: Identifying Cancel, Main, Set/Coast And Resume/Accelerate Switches

Courtesy of NISSAN MOTOR CO., U.S.A.

FUNCTION DESCRIPTION CHART

No.	Description	Function
1	CANCEL switch	Deactivates system without erasing set speed.
2	RESUME/ACCELERATE switch	Resumes set speed or increases speed incrementally.
3	SET/COAST switch	Sets desired cruise speed or reduces speed incrementally.
4	MAIN switch	Master switch to activate the system (Press for more than 1.5 seconds).

ICC System Display (On The Information Display)

Fig 2: Identifying ICC System Display

Courtesy of NISSAN MOTOR CO., U.S.A.

FUNCTION DESCRIPTION CHART

No.	Description	Function
1	ICC system warning lamp	Indicates that a malfunction occurs in the ICC system.
2	MAIN switch Indicator	Indicates that the MAIN switch is ON (ICC system ON).
3	SET switch indicator	Indicates that the set conventional (fixed speed) cruise control mode is controlled.

System Control Condition Display

Push and hold the MAIN switch for longer than approximately 1.5 seconds. This mode will be in a standby state for setting.

CONDITION REFERENCE CHART

Condition	Display on ICC system display
Standby mode	Courtesy of NISSAN MOTOR CO., U.S.A.
Control mode	Courtesy of NISSAN MOTOR CO., U.S.A.

Warning and Automatic Cancellation Display

CONDITION DESCRIPTION CHART

Condition		Description	Display on ICC system display
Warning display	When the ICC system is malfunctioning	A chime sounds and the control is automatically canceled. NOTE: Turn the engine OFF and restart engine. If there is no malfunction, it is possible to set the system.	Courtesy of NISSAN MOTOR CO., U.S.A.
System cancel display	When brake pedal is depressed When pressing CANCEL switch When the vehicle speed falls below approximately 32 km/h (20 MPH) When the vehicle slows down more than 13 km/h (8 MPH) below the set speed When the selector lever is not in the "D", "DS" position or manual mode When VDC (including the TCS) operates When a wheel slips	A chime sounds and the control is automatically canceled. NOTE: The system will be in a standby, after the control is automatically cancelled. A chime sounds when the control is automatically canceled, except when brake pedal is depressed or when CANCEL switch is pressed.	Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: When the ICC system is automatically cancelled, the cancellation condition can be displayed on "WORK SUPPORT" of CONSULT-III (ICC/ADAS).
