Exploded View: Disassembly

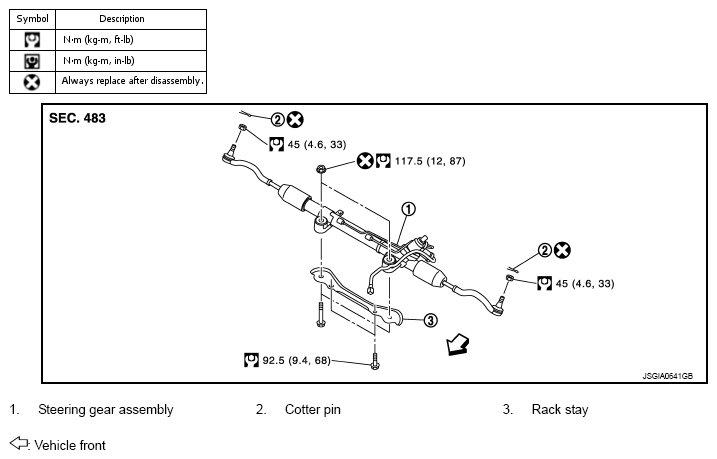

Fig 1: Exploded View Of Steering Gear And Linkage With Torque Specifications
G07230942Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.
