Climate Controlled Seat Control Unit (Driver Side) Connector End View (B509)

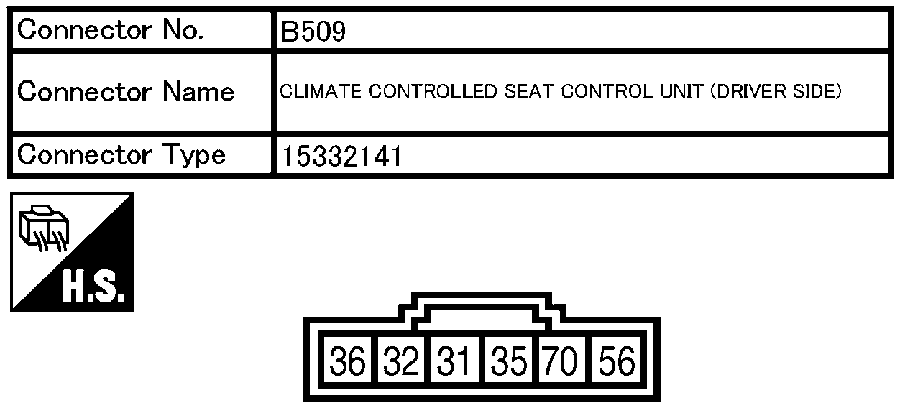

Fig 1: Climate Controlled Seat Control Unit (Driver Side) Connector End View (B509)

G10705203

Courtesy of NISSAN NORTH AMERICA, INC.
