Climate Controlled Seat Control Unit (Driver Side) Connector End View (B507)

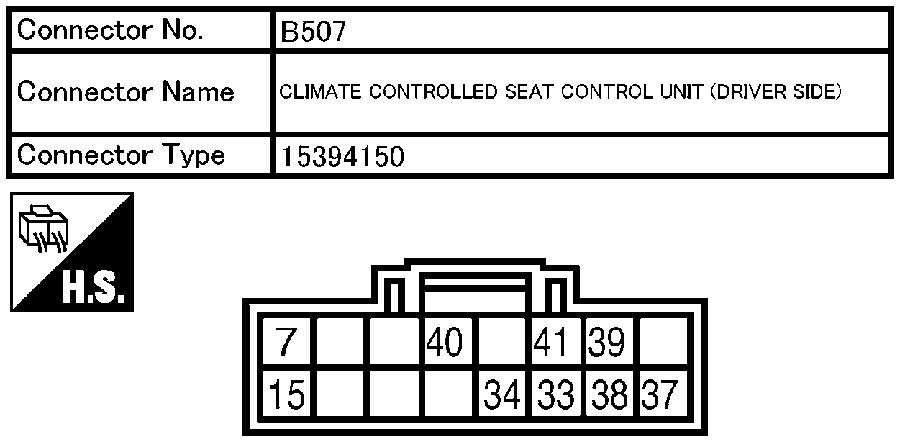

Fig 1: Climate Controlled Seat Control Unit (Driver Side) Connector End View (B507)

G10705201

Courtesy of NISSAN NORTH AMERICA, INC.
