Section 39 (Instrument Panel (CROSSCABRIOLET))
>>
Removal And Installation
>>
Instrument Panel Assembly
>>
Exploded View
Exploded View
WARNING:
This page is about a different car, the 2011 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

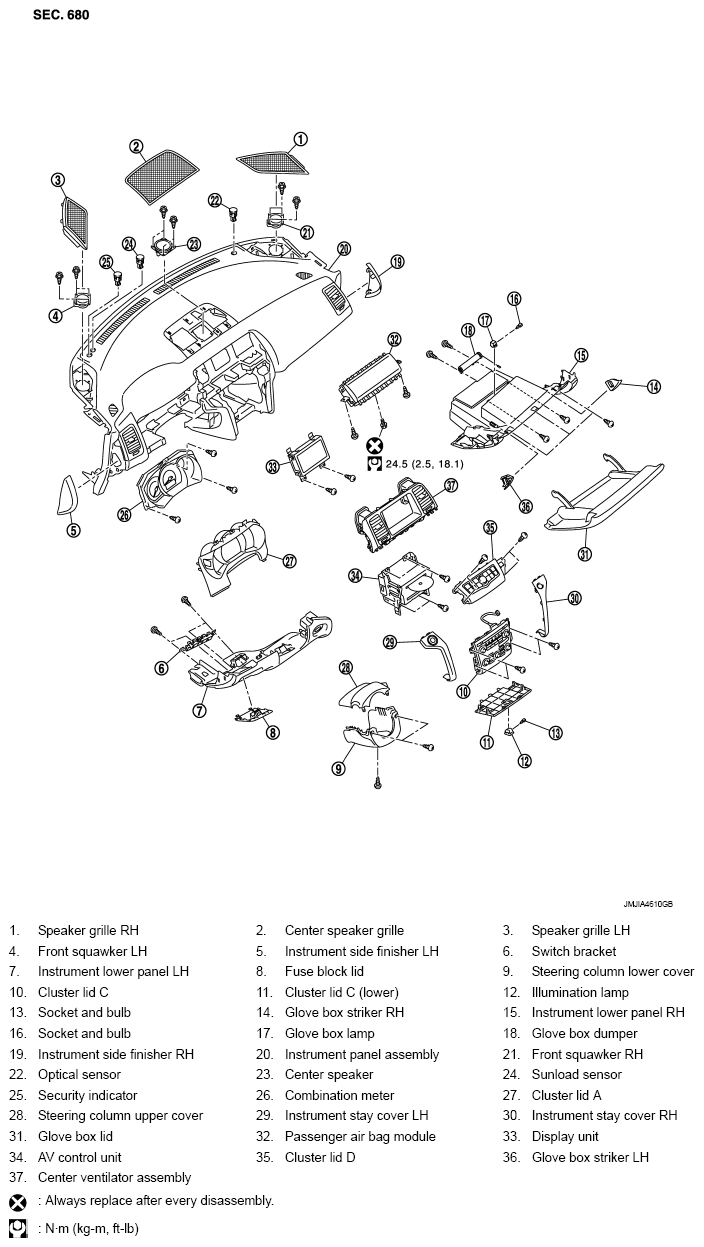

Fig 1: Exploded View Of Instrument Panel Assembly With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
