System Description

WARNING: This page is about a different car, the 2011 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

The ECM controls the engine mount operation corresponding to the engine speed. The control system has a 2-step control [Soft/Hard]

VEHICLE CONDITION CHART

Vehicle condition	Engine mount control
Engine speed: Below 950 RPM	Soft
Engine speed: Above 950 RPM	Hard

ELECTRONIC CONTROLLED ENGINE MOUNT LINE DRAWING

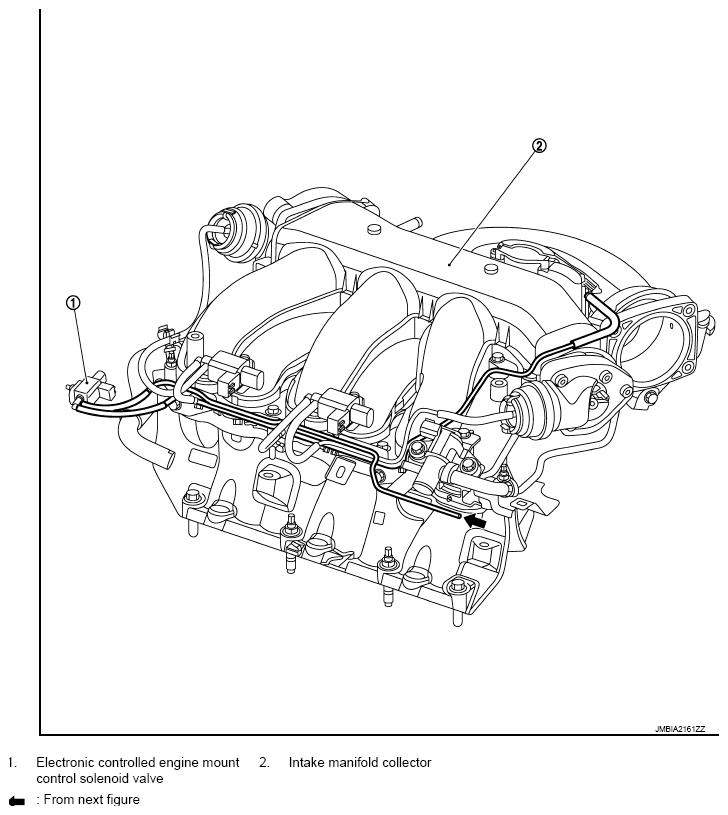

Fig 1: Electronic Controlled Engine Mount Line Drawing (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

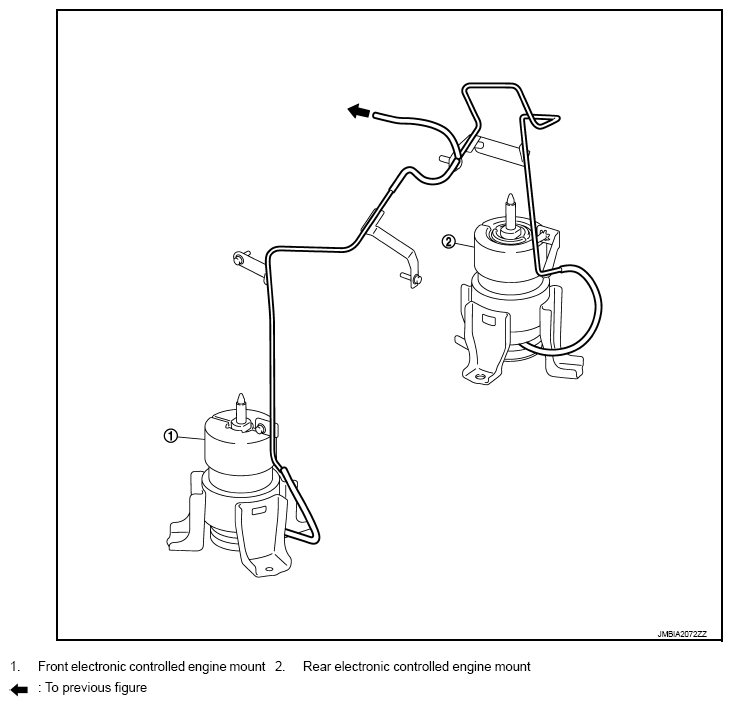

Fig 2: Electronic Controlled Engine Mount Line Drawing (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Do not use soapy water or any type of solvent while installing vacuum hose.
