Engine Control System (VQ35HR) - FX35 - Diagnostics Introduction & DTC Index
>>
System Description
>>
Air Conditioning Cut Control
>>
System Diagram
System Diagram

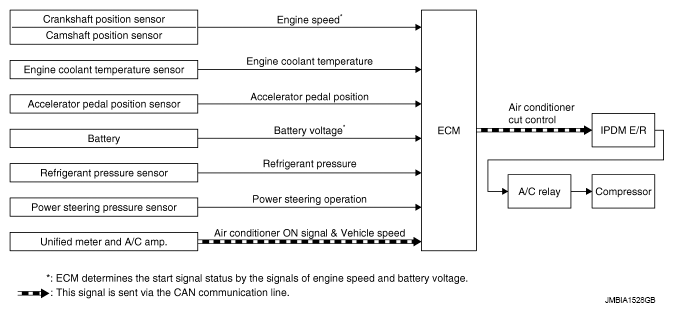

Fig 1: Identifying Air Conditioning Cut Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
