Oil Cooler
>>
Exploded View
>>
AWD models
AWD models

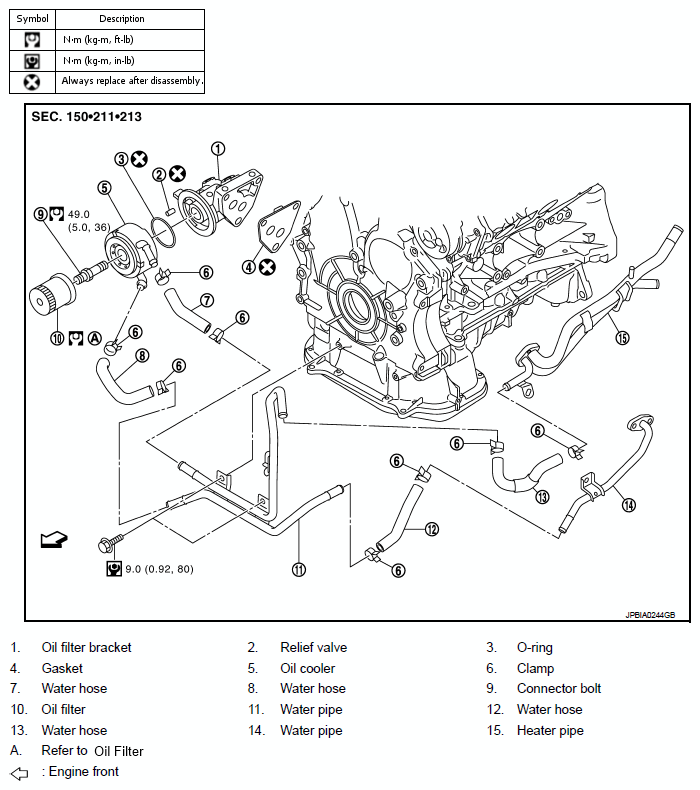

Fig 1: Exploded View Of Oil Cooler - AWD Models With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols in the figure.
