Exploded View
>>
Removal
Exploded View: Removal

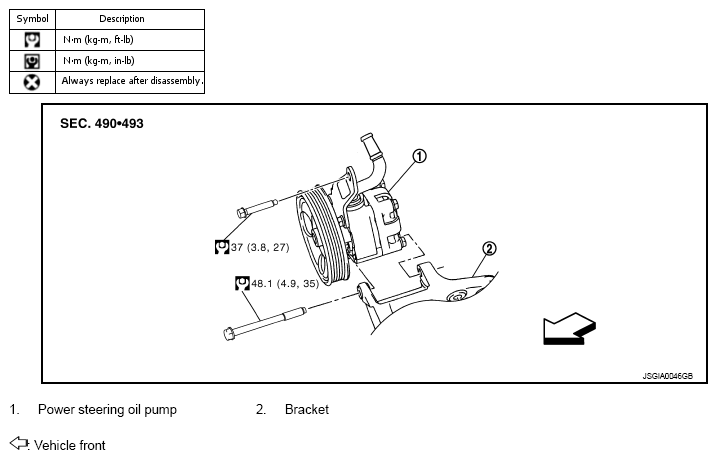

Fig 1: Power Steering Oil Pump Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols in the figure.
