Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2011 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install strut attachment [SST: ST35652000 (-)] to strut and secure it in a vise.
    CAUTION: When installing the strut attachment to strut assembly, wrap a shop cloth around strut to protect from damage.
  2. Install lower rubber seat.
  3. Install bound bumper onto strut mounting insulator.
  4. Compress coil spring using a spring compressor (commercial service tool), and install it onto strut assembly.
    CAUTION:
    • Face tube side of coil spring (1) downward. Align the lower end (A) to lower rubber seat (2).
    • Be sure a compressor is securely attached to coil spring. Compress coil spring.
    • Set coil spring so that its paint marks are aligned with the positions of 1.25 turns and 2.25 turns from the bottom end of the coil spring.
      Fig 1: Identifying Coil Spring And Lower Rubber Seat
      G05893067Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install strut mounting bearing and strut mounting insulator with bound bumper to strut.

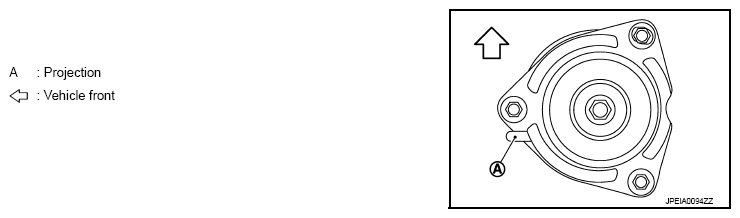

    • Installation position of strut mounting insulator is shown in the figure.
      Fig 2: Identifying Strut Assembly
      G07131915Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Secure piston rod tip so that piston rod does not turn, then tighten piston rod lock nut to specified torque.
    CAUTION: Never reuse piston rod lock nut.
  7. Gradually release a spring compressor, and remove coil spring.
    CAUTION: Loosen while making sure coil spring attachment position does not move.
  8. Remove the strut attachment from strut assembly.
