Removal and Installation: Installation

WARNING: This page is about a different car, the 2011 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Note the following, and install in the reverse order of removal.

CAUTION:
  • Never allow engine mounting insulator to be damage and careful no oil gets on it.
  • Check all mounting insulators are seated properly, then tighten mounting nuts and bolts.

Preparation

  1. Install the engine mounting bracket (RH) to the engine as follows:
    1. Tighten the bolt No. 7 as shown in the illustration. (temporarily)

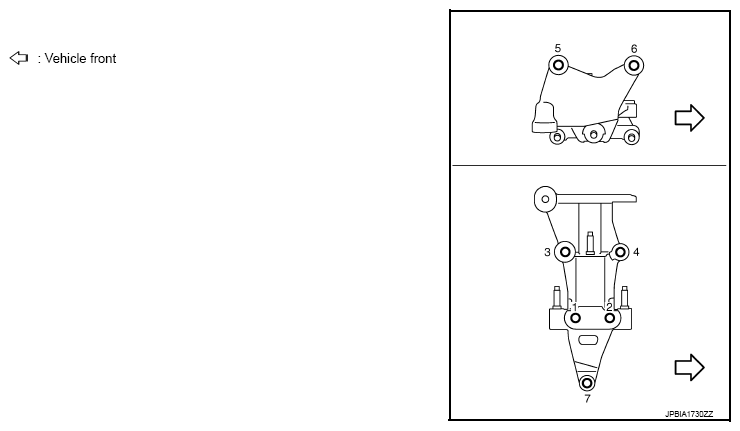

      Fig 1: Tightening Order Of Bolts To Install Engine Mounting Bracket (RH)
      G07130984Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Tighten the bolts in numerical order as shown in the illustration. (specified torque)
  2. Install the engine mounting bracket (front) to the engine as follows:
    1. Tighten the bolt No. 4 as shown in the illustration. (temporarily)

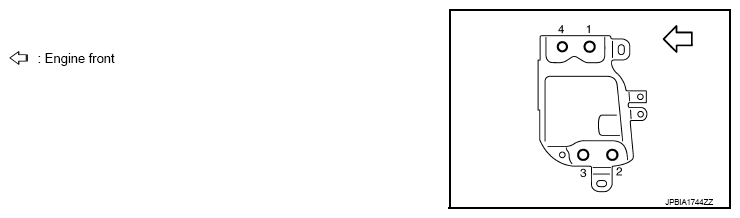

      Fig 2: Tightening Order Of Bolts To Install Engine Mounting Bracket (Front)
      G07130985Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Tighten the bolts in numerical order as shown in the illustration. (specified torque)
  3. Install the engine mounting bracket (rear) to the engine as follows:
    1. Tighten the bolt No. 4 as shown in the illustration. (temporarily)

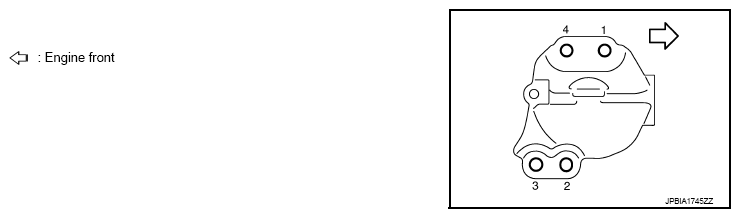

      Fig 3: Tightening Order Of Bolts To Install Engine Mounting Bracket (Rear)
      G07130986Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Tighten the bolts in numerical order as shown in the illustration. (specified torque)
  4. Install the rear torque rod bracket to the engine as follows:
    1. Tighten the bolt No. 3 as shown in the illustration. (temporarily)

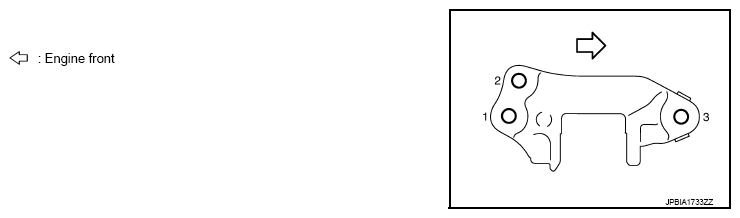

      Fig 4: Tightening Order Of Bolts To Install Rear Torque Rod Bracket
      G07130987Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Tighten the bolts in numerical order as shown in the illustration. (specified torque)
  5. Install the engine mounting insulator (LH) to the transaxle as follows:
    1. Tighten the bolt No. 3 as shown in the illustration. (temporarily)

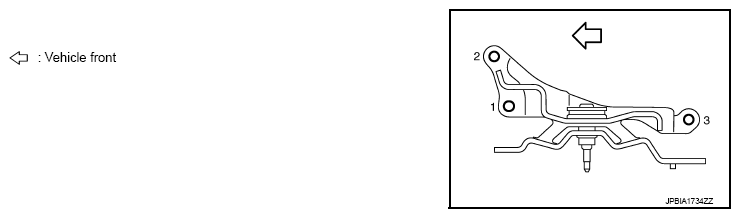

      Fig 5: Tightening Order Of Bolts To Install Engine Mounting Insulator (LH)
      G07130988Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Tighten the bolts in numerical order as shown in the illustration. (specified torque)
  6. Install the engine mounting insulator (front) to the front suspension member as follows:
    1. Tighten the bolt No. 3 as shown in the illustration. (temporarily)

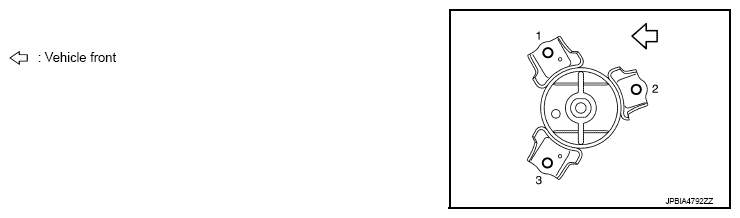

      Fig 6: Tightening Order Of Bolts To Install Engine Mounting Insulator (Front)
      G07130989Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Tighten the bolts in numerical order as shown in the illustration. (specified torque)
  7. Install the engine mounting insulator (rear) to the front suspension member as follows:
    1. Tighten the bolt No. 4 as shown in the illustration. (temporarily)

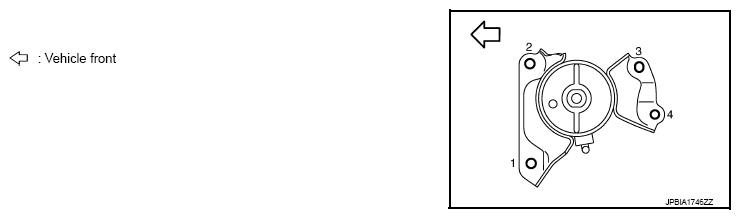

      Fig 7: Tightening Order Of Bolts To Install Engine Mounting Insulator (Rear)
      G07130990Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Tighten the bolts in numerical order as shown in the illustration. (specified torque)
  8. Install the rear torque rod to the front suspension member as follows:
    1. Tighten the bolt No. 3 as shown in the illustration. (temporarily)

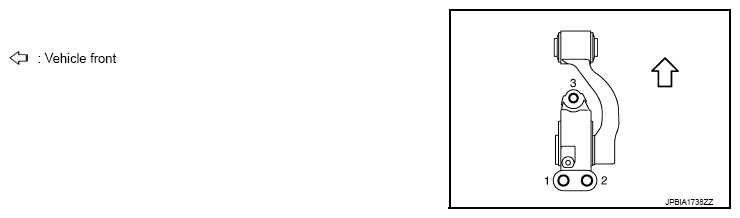

      Fig 8: Tightening Order Of Bolts To Install Rear Torque Rod
      G07130991Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Tighten the bolts in numerical order as shown in the illustration. (specified torque)
  9. Install the engine mounting brackets (front and rear) to the engine mounting insulators (front and rear).
  10. Install the engine mounting insulator (LH) to the front suspension member.
    • Tighten the bolts in numerical order as shown in the illustration.

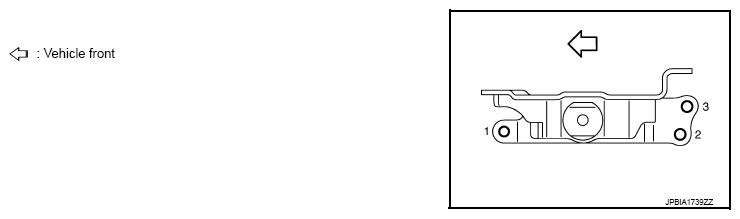

      Fig 9: Tightening Order Of Bolts To Install Engine Mounting Insulator (LH)
      G07130992Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Install the rear torque rod to the rear torque rod bracket.
  12. Install the vacuum tube (front) as follows:
    1. Tighten the bolt No. 3 as shown in the illustration. (temporarily)

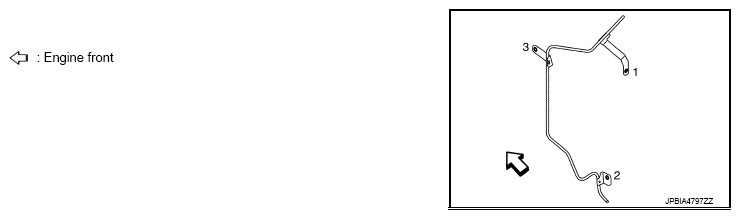

      Fig 10: Tightening Order Of Bolts To Install Vacuum Tube (Front)
      G07130993Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Tighten the bolts in numerical order as shown in the illustration. (specified torque)
  13. Install the vacuum tube (rear) as follows:
    1. Tighten the bolt No. 3 as shown in the illustration. (temporarily)

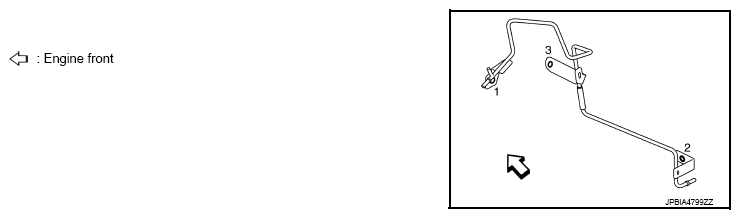

      Fig 11: Tightening Order Of Bolts To Install Vacuum Tube (Front)
      G07130994Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Tighten the bolts in numerical order as shown in the illustration. (specified torque)

Installation

  1. Install the engine mounting insulator (RH) as follows:
    1. Tighten the bolt No. 1 as shown in the illustration. (temporarily)

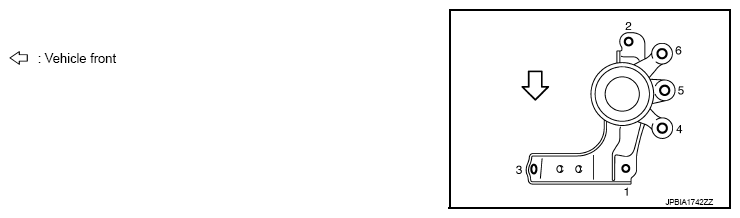

      Fig 12: Tightening Order Of Bolts To Install Engine Mounting Insulator (RH)
      G07130995Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Tighten the bolts No. 2, 3 in numerical order as shown in the illustration. (specified torque)
    3. Tighten the bolt No. 1 as shown in the illustration. (specified torque)
    4. Tighten the bolts No. 4, 5, 6 in numerical order as shown in the illustration. (specified torque)
  2. Install the upper torque rod as follows:
    1. Tighten the bolt No. 2 as shown in the illustration. (temporarily)

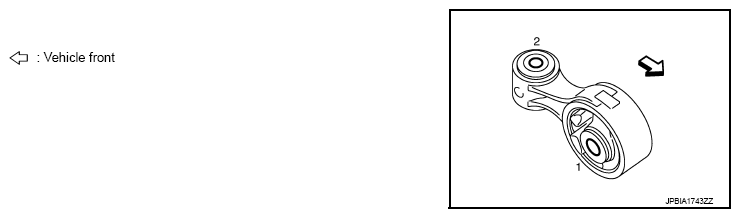

      Fig 13: Tightening Order Of Bolts To Install Upper Torque Rod
      G07130996Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Tighten the bolts in numerical order as shown in the illustration. (specified torque)
