AWD : Exploded View
>>
Removal
AWD : Exploded View: Removal

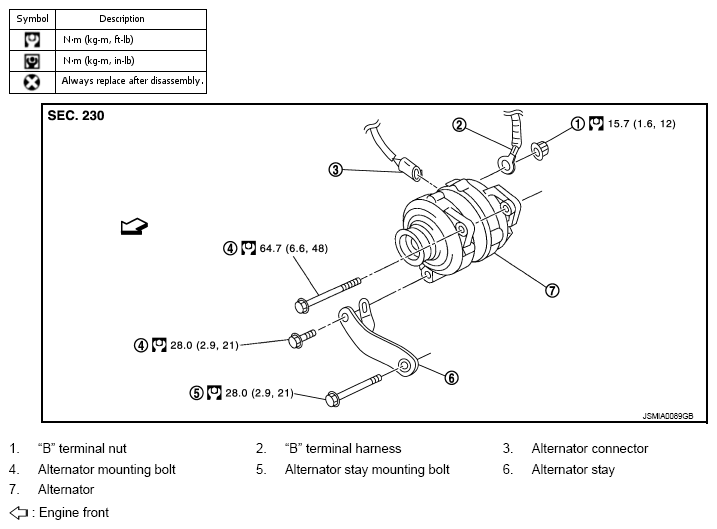

Fig 1: Locating Alternator Components With Torque Specifications (AWD)
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols in the figure.
