Home >> Infiniti >> 2011 >> EX35 Base, RWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Inline Connector End View (M117)

Inline Connector End View (M117)

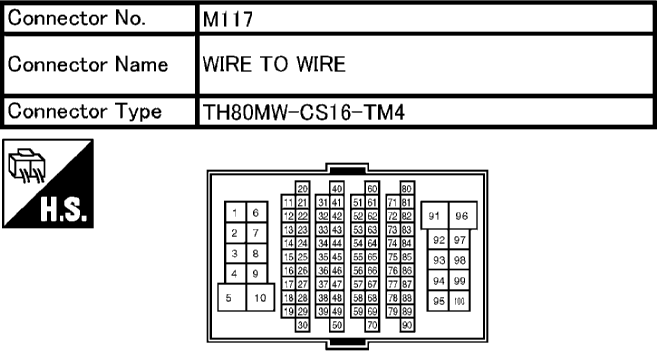

Fig 1: Inline Connector End View (M117)

G10684970

Courtesy of NISSAN NORTH AMERICA, INC.
