Removal And Installation
>>
Parking Brake Control
>>
Exploded View
Exploded View

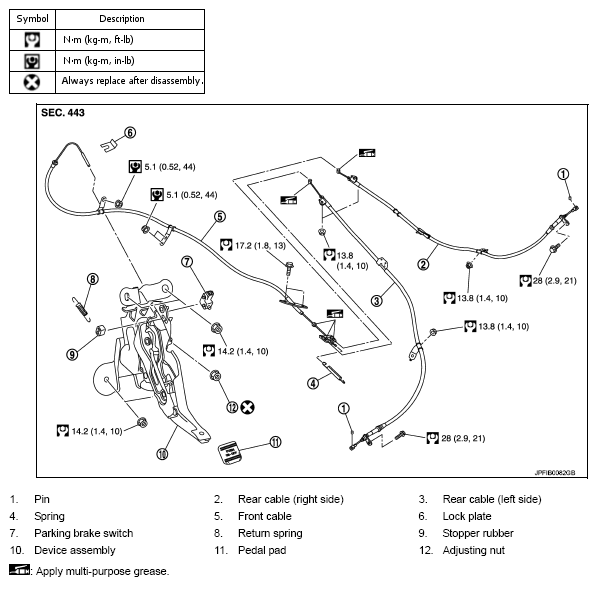

Fig 1: Exploded View Of Parking Brake Control With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols not described on the above.
