Rear Oil Seal
>>
Exploded View
Exploded View

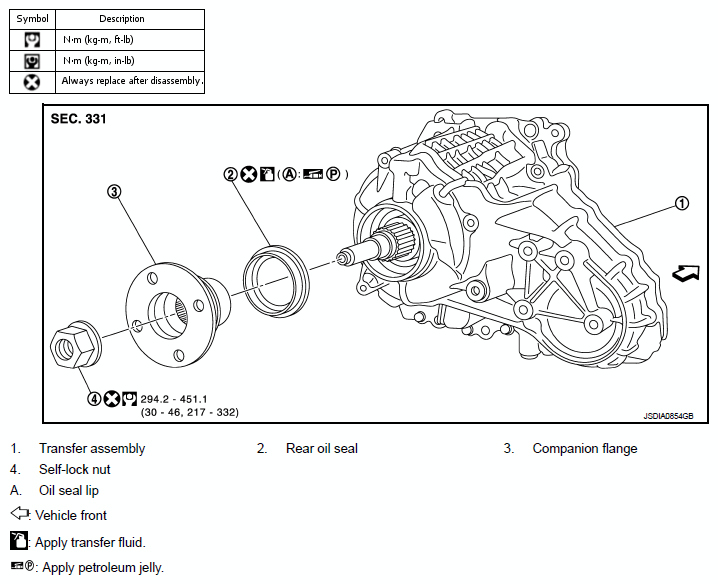

Fig 1: Rear Oil Seal Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols not described above.
