Infiniti
>>
2011
>>
EX35 Base, AWD
>>
Repair and Diagnosis
>>
Transmission
>>
Transfer Case
>>
Removal And Installation
>>
Front Oil Seal
>>
Exploded View
Exploded View

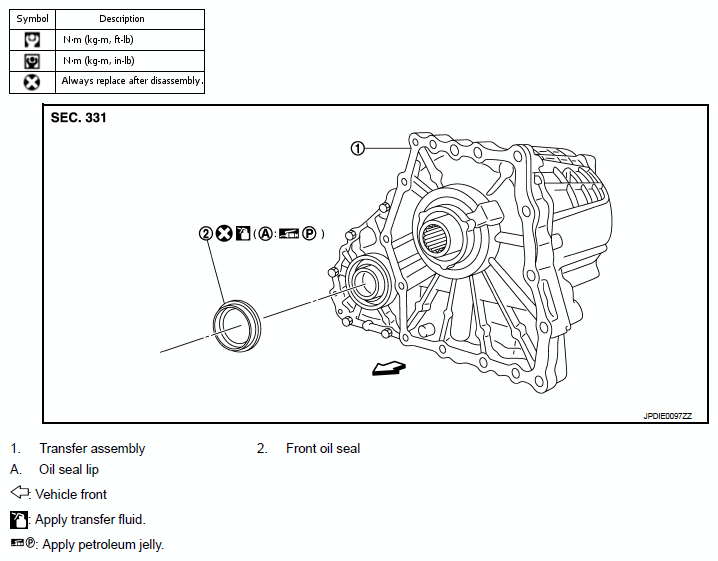

Fig 1: Identifying Front Oil Seal Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols not described above.
