Transfer Fluid: Draining

Run the vehicle to warm up the transfer unit sufficiently.
Stop the engine, and remove the drain plug (1) to drain the transfer fluid.
Set a new gasket onto the drain plug, and install it on the transfer and tighten to the specified torque. Refer to "EXPLODED VIEW ".

CAUTION: Never reuse gasket.

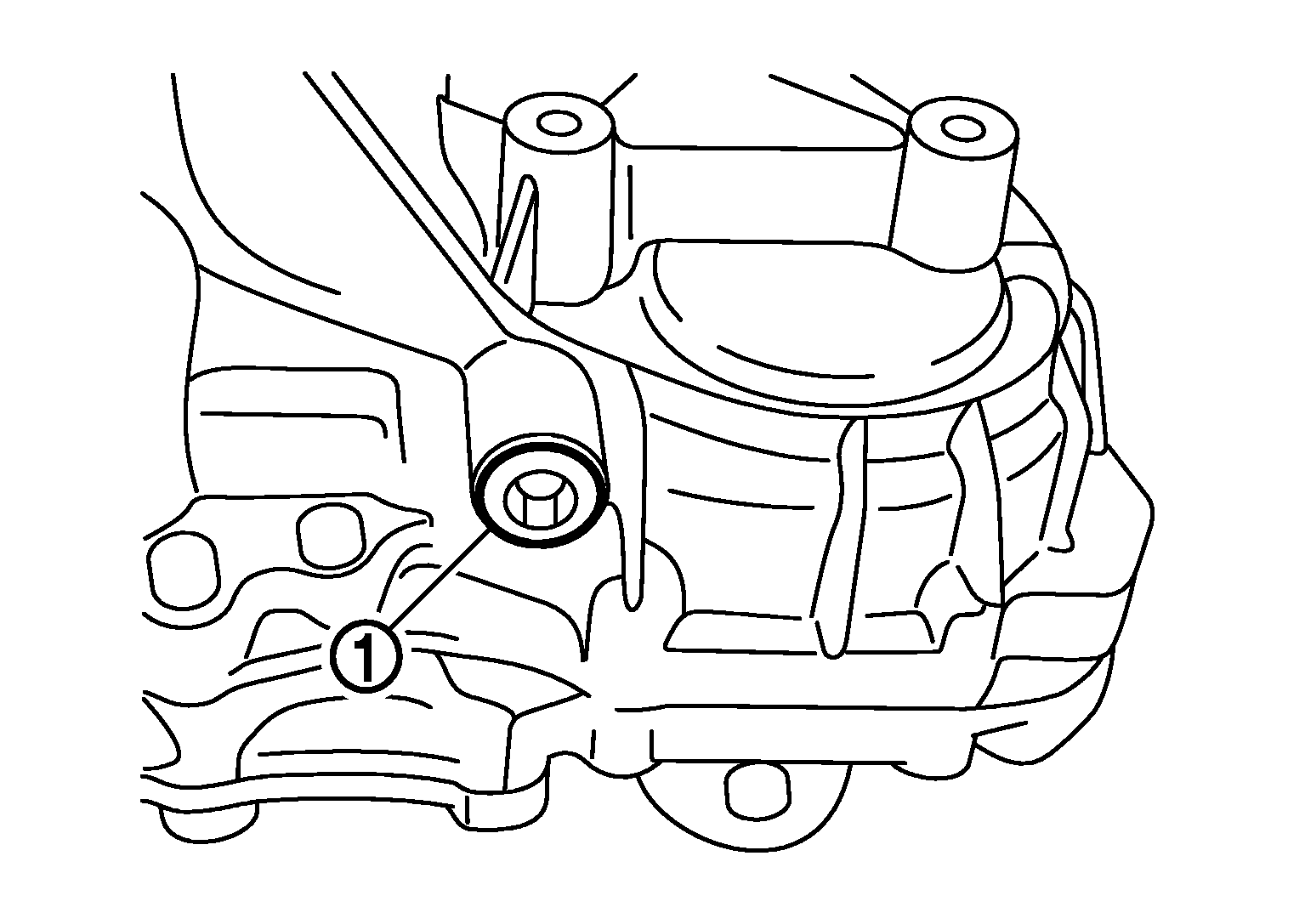

Fig 1: Identifying Drain Plug

Courtesy of NISSAN MOTOR CO., U.S.A.
