Under Drive Carrier, Front Brake Hub: Assembly

1. Install snap ring (1) to front brake hub.
   CAUTION: Be careful not to damage snap ring.

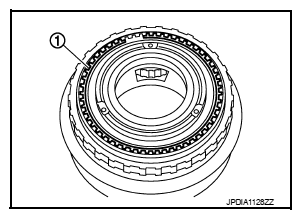

   Fig 1: Identifying Snap Ring

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install under drive carrier assembly (1) to front brake hub.
   Fig 2: Identifying Under Drive Carrier Assembly

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Install snap ring (1) to front brake hub using a flat-bladed screwdriver.

CAUTION:

• Be careful not to scratch front brake hub.
• Be careful not to damage snap ring.

Fig 3: Identifying Snap Ring

Courtesy of NISSAN MOTOR CO., U.S.A.
