MANUAL MODE : System Diagram
MANUAL MODE : System Diagram

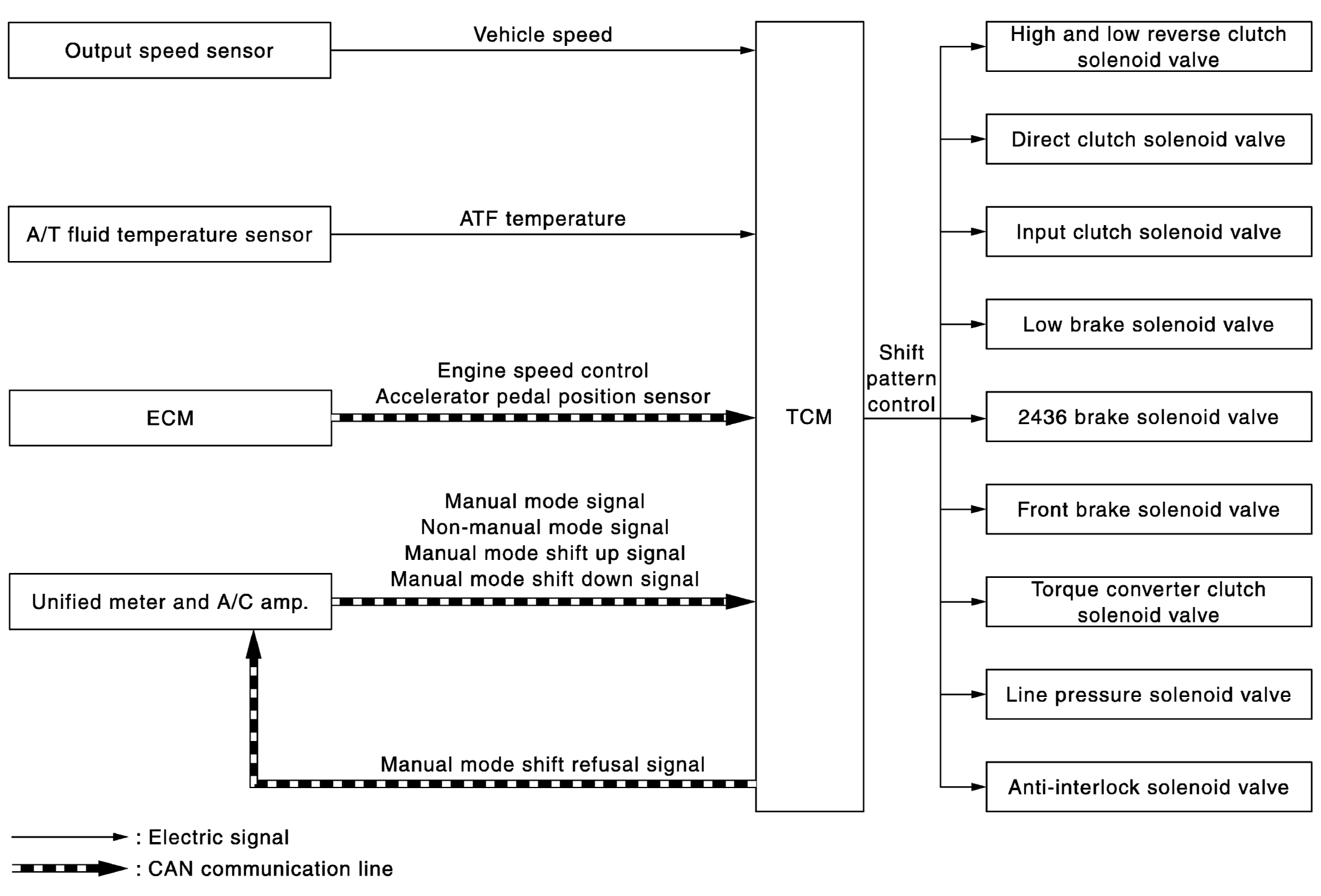

Fig 1: Manual Mode - System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
