ASC (ADAPTIVE SHIFT CONTROL) : System Diagram

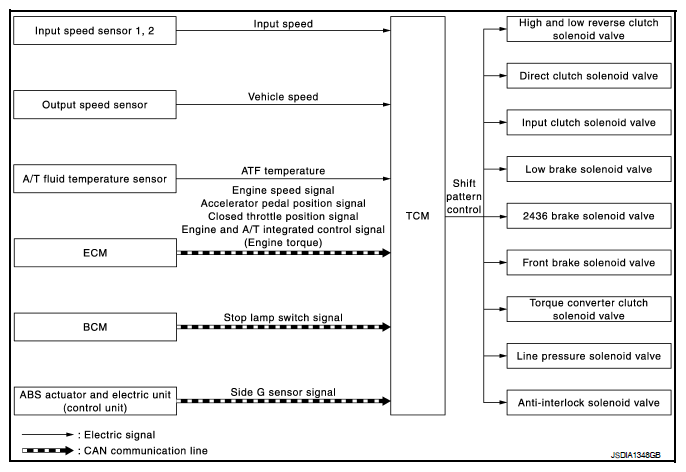

Fig 1: ASC - System Diagram

G07165239

Courtesy of NISSAN MOTOR CO., U.S.A.
