Symptom Table 2

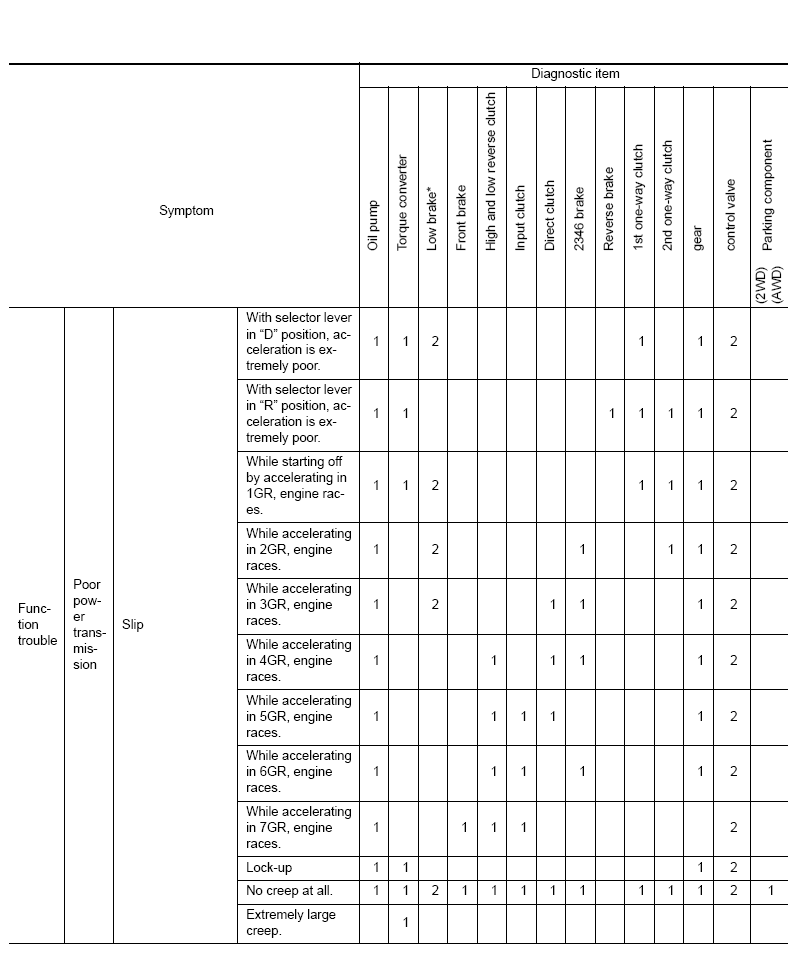

Fig 1: Symptom Table 2 (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

*: Parts behind drum support is impossible to perform inspection by disassembly. Refer to "CROSS-SECTIONAL VIEW ".

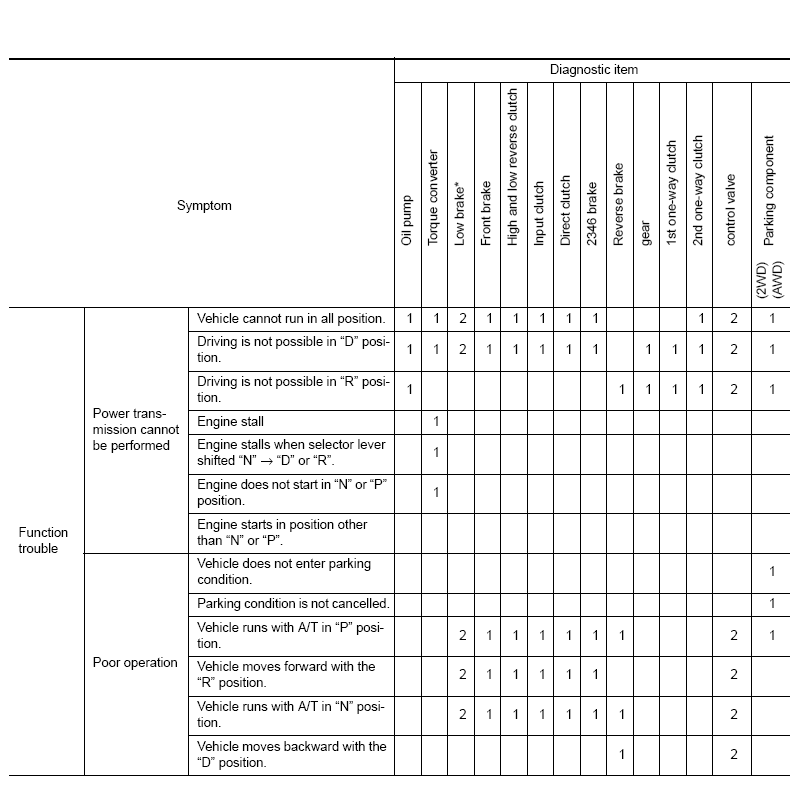

Fig 2: Symptom Table 2 (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

*: Parts behind drum support is impossible to perform inspection by disassembly. Refer to "CROSS-SECTIONAL VIEW ".

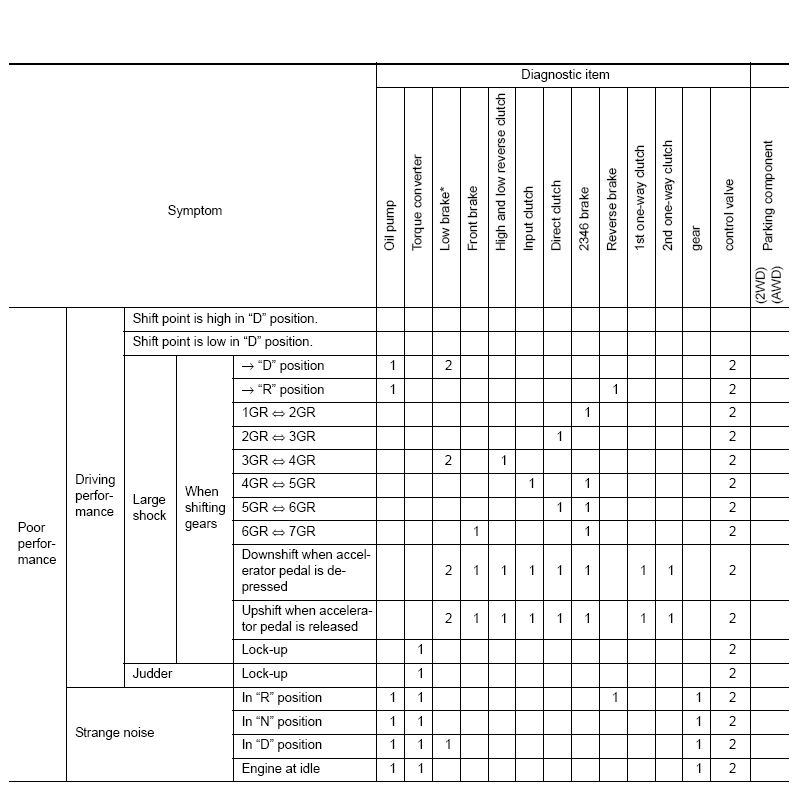

Fig 3: Symptom Table 2 (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

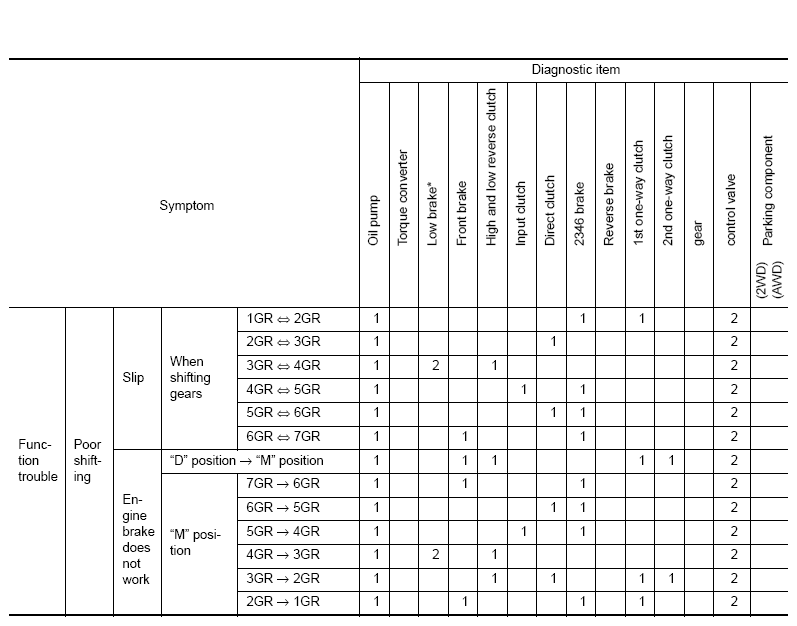

Fig 4: Symptom Table 2 (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

*: Parts behind drum support is impossible to perform inspection by disassembly. Refer to "CROSS-SECTIONAL VIEW ".

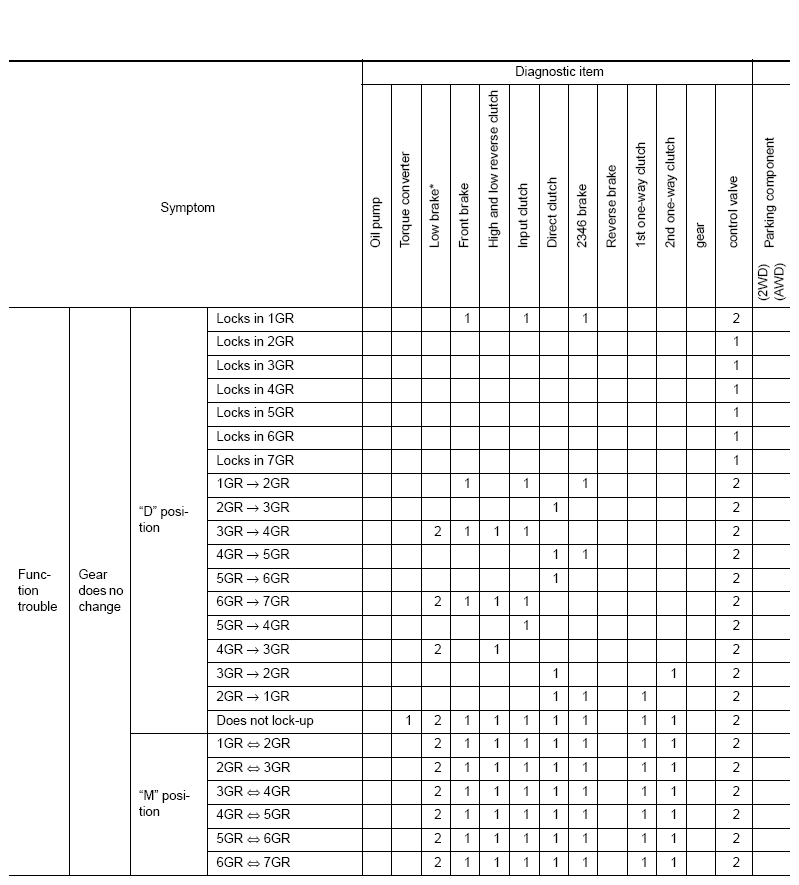

Fig 5: Symptom Table 2 (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

*: Parts behind drum support is impossible to perform inspection by disassembly. Refer to "CROSS-SECTIONAL VIEW ".
