Symptom Table 1
Symptom Table 1

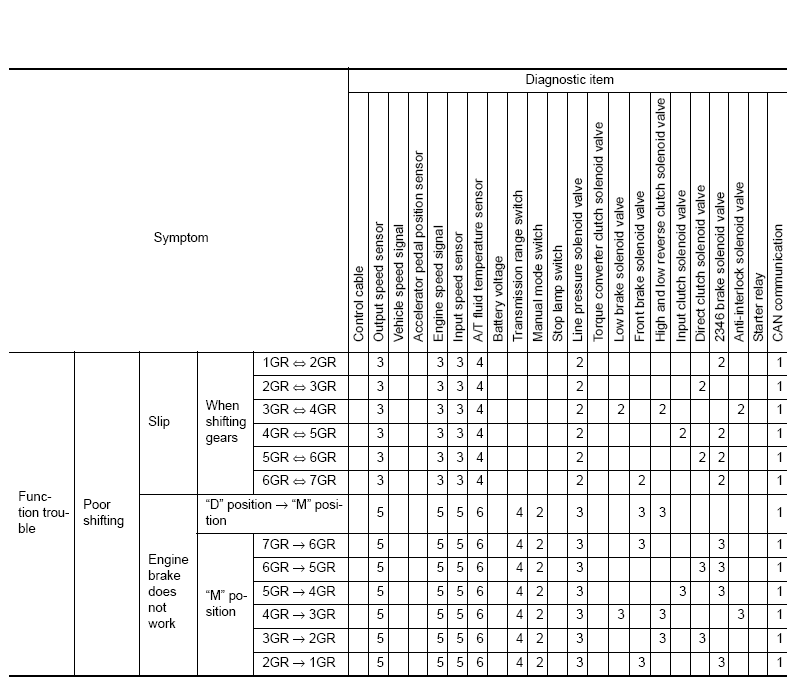

Fig 1: Symptom Table 1 (1 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

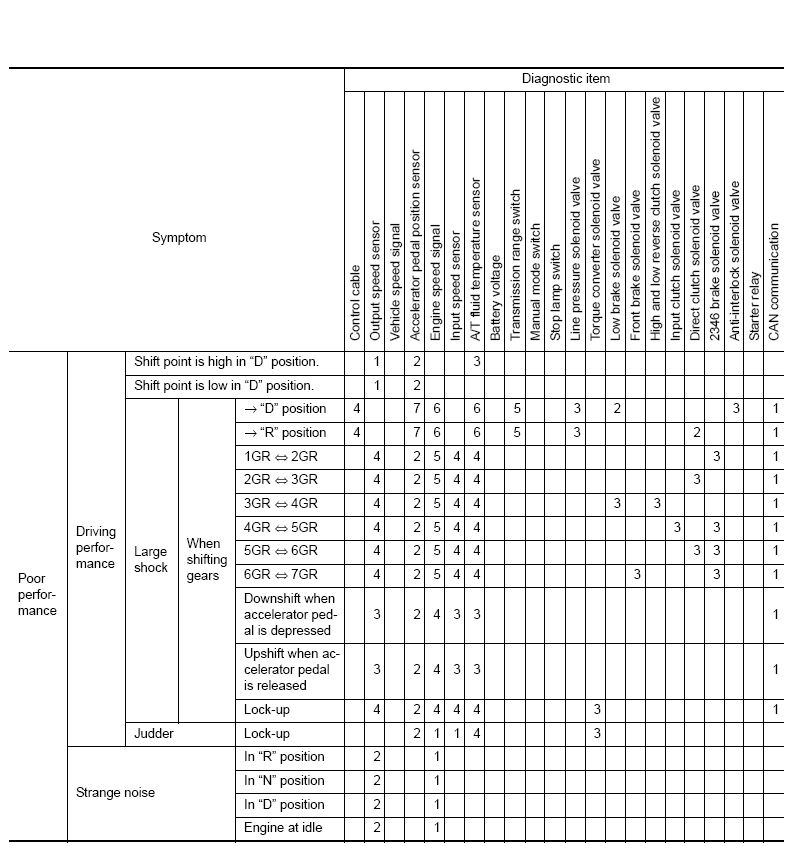

Fig 2: Symptom Table 1 (2 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

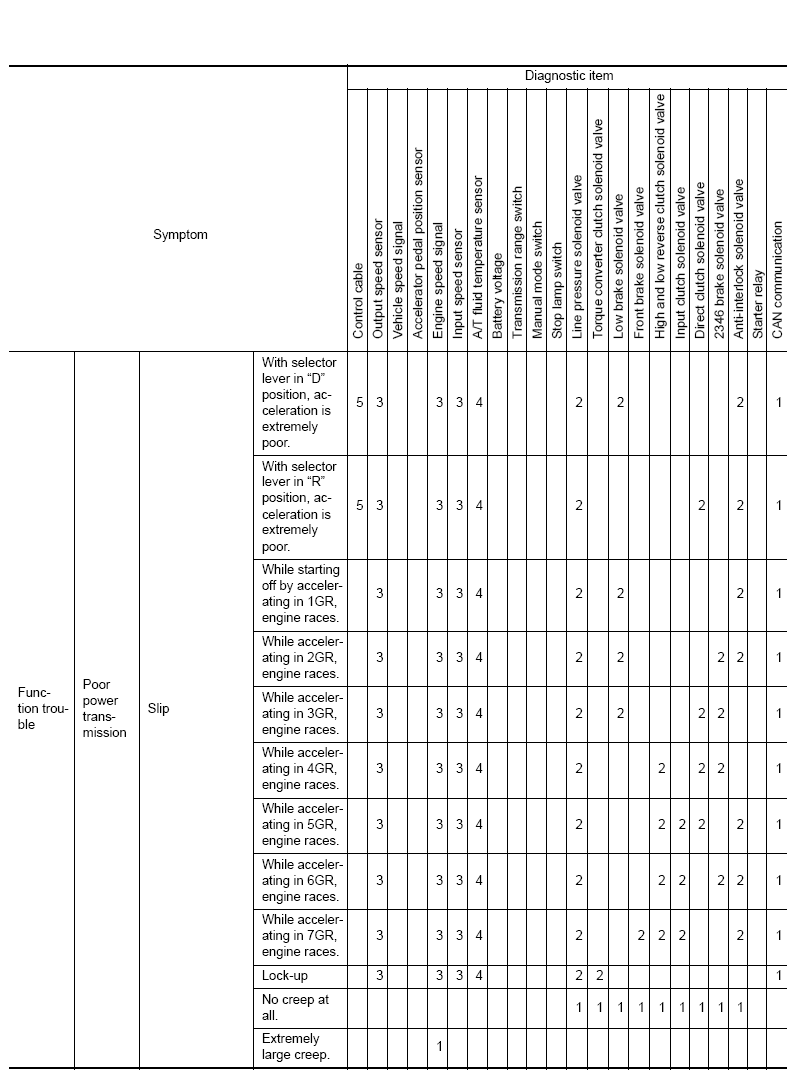

Fig 3: Symptom Table 1 (3 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

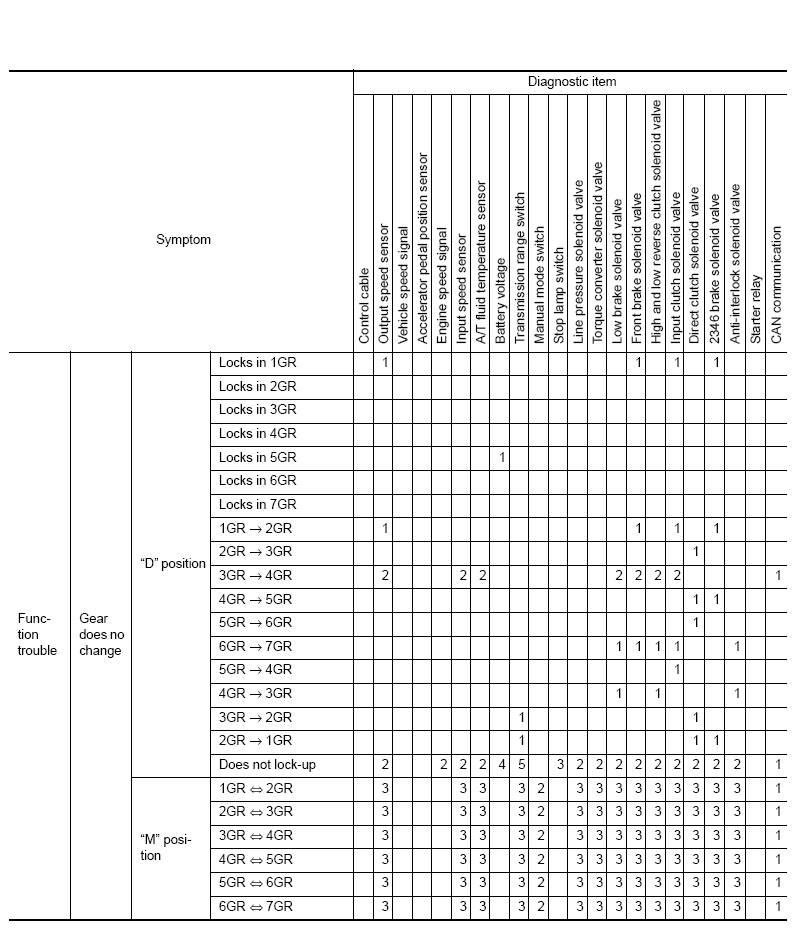

Fig 4: Symptom Table 1 (4 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

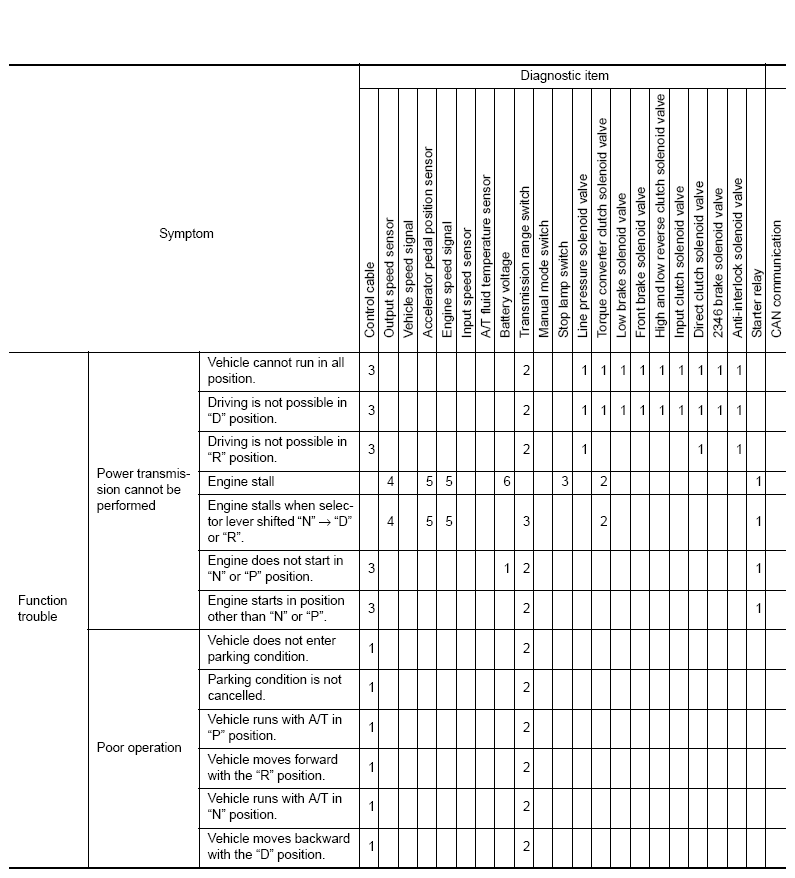

Fig 5: Symptom Table 1 (5 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
