Removal and Installation: Removal

  1. Disconnect the battery cable from the negative terminal.
  2. Drain ATF through drain plug.
  3. Remove exhaust front tube and center muffler with power tool. Refer to "REMOVAL AND INSTALLATION ".
  4. Remove propeller shaft assembly. Refer to "REMOVAL AND INSTALLATION ".
  5. Remove control rod. Refer to "REMOVAL AND INSTALLATION ".
  6. Remove exhaust mounting bracket. Refer to "REMOVAL AND INSTALLATION ".
  7. Disconnect heated oxygen sensor 2 harness connectors (A).

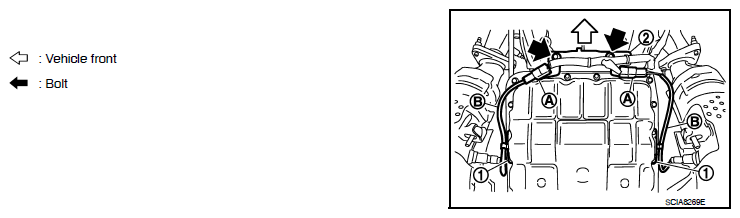

    Fig 1: Identifying Heated Oxygen Sensor Harness Connectors
    G07165350Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Remove heated oxygen sensor 2 harness (B) from clips (1).
  9. Remove bracket (2) from transmission assembly. Refer to "2WD : REMOVAL AND INSTALLATION ".
  10. Remove clips (1).
    Fig 2: Identifying Clips
    G07165351Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Remove oil pan (2) and oil pan gasket.
  12. Support A/T assembly with a transmission jack.
    CAUTION: When setting transmission jack, place wooden blocks to prevent from damaging control valve&TCM and transmission case.
  13. Remove rear engine mounting member with power tool. Refer to "2WD : REMOVAL AND INSTALLATION ".
  14. Remove engine mounting insulator (rear). Refer to "2WD : REMOVAL AND INSTALLATION ".
  15. Remove tightening bolts for rear extension assembly and transmission case.

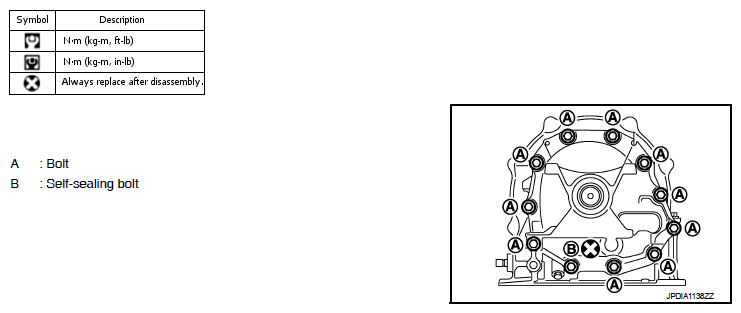

    Fig 3: Identifying Rear Extension Assembly Bolts
    G07165352Courtesy of NISSAN MOTOR CO., U.S.A.
  16. Tap rear extension assembly with a soft hammer (A).
    Fig 4: Tapping Rear Extension Assembly
    G07165353Courtesy of NISSAN MOTOR CO., U.S.A.
  17. Remove rear extension assembly (with needle bearing) from transmission case.
    Fig 5: Removing Rear Extension Assembly
    G07165354Courtesy of NISSAN MOTOR CO., U.S.A.
  18. Disconnect output speed sensor connector (A).
    CAUTION: Be careful not to damage connector
  19. Disengage terminal clips (← ).
    Fig 6: Identifying Terminal Clip
    G07165355Courtesy of NISSAN MOTOR CO., U.S.A.
  20. Remove output speed sensor (1) from transmission case.

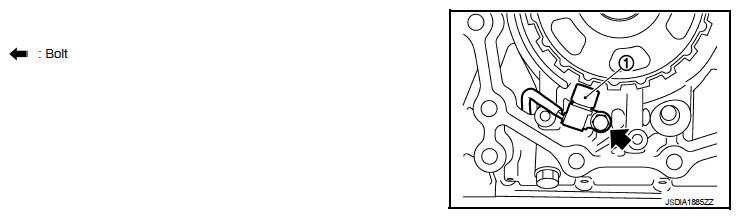

Fig 7: Identifying Output Speed Sensor
G07165356Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • Never subject it to impact by dropping or hitting it.
  • Never disassemble.
  • Never allow metal filings, etc. to get on the sensor's front edge magnetic area.
  • Never place in an area affected by magnetism.
