2WD : Exploded View
2WD : Exploded View

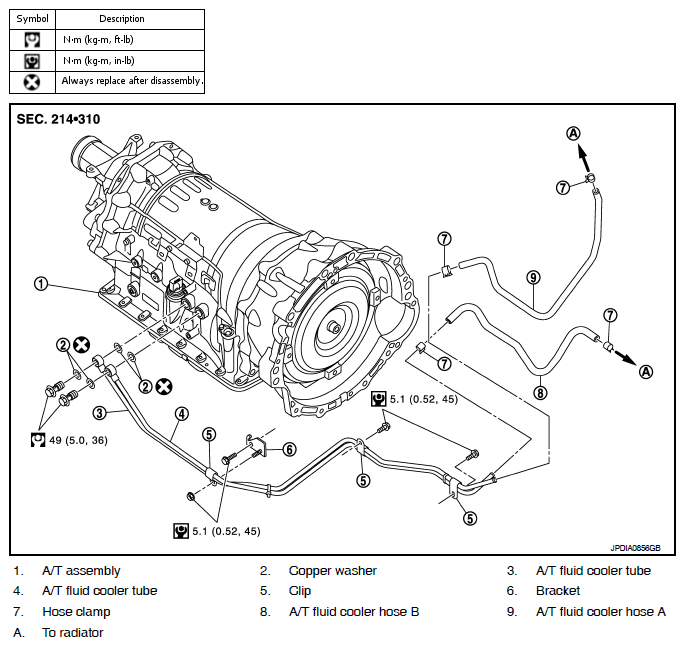

Fig 1: Fluid Cooler System Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols in the figure.
