Removal and Installation: Removal

Drain ATF through drain plug.
Remove exhaust mounting bracket with power tool. Refer to "REMOVAL AND INSTALLATION ".

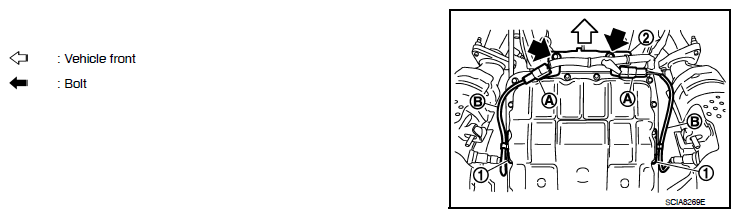

Disconnect heated oxygen sensor 2 connectors (A).

Fig 1: Identifying Heated Oxygen Sensor Connectors
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove heated oxygen sensor 2 harness (B) from clips (1).
Remove bracket (2) from A/T assembly. Refer to "2WD : REMOVAL AND INSTALLATION " (2WD) or "AWD : REMOVAL AND INSTALLATION " (AWD).
Remove clips (1).

Fig 2: Identifying Clips
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove oil pan (2) and oil pan gasket.
Remove magnets (1) from oil pan.

Fig 3: Identifying Magnets
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove snap ring (1) from A/T assembly connector (2).

Fig 4: Identifying Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Push A/T assembly connector (1).

Fig 5: Identifying A/T Assembly Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect output speed sensor connector (A).
CAUTION: Be careful not to damage connector.
Disengage terminal clip (← ).

Fig 6: Identifying Terminal Clip
Courtesy of NISSAN MOTOR CO., U.S.A.

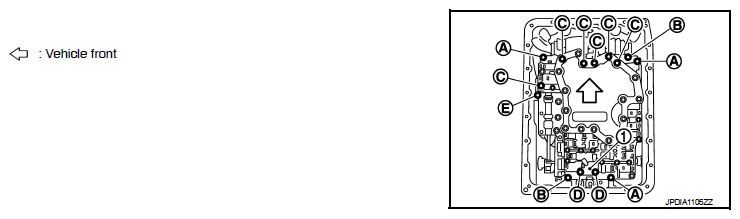

Remove bolts and clip (1) from the control valve&TCM.

Fig 7: Identifying Bolts And Clip

Courtesy of NISSAN MOTOR CO., U.S.A.

BOLT SPECIFICATION

Bolt symbol

Length mm (in)

Number of bolts

43 (1.69)

40 (1.57)

54 (2.13)

50 (1.97)

E⁽¹⁾

50 (1.97)

⁽¹⁾	Reamer bolt

Remove the control valve&TCM from transmission case.

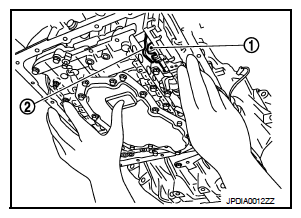

CAUTION: When removing, be careful with the manual valve (1) notch and manual plate (2) height. Remove it vertically.

Fig 8: Identifying Manual Valve
Courtesy of NISSAN MOTOR CO., U.S.A.

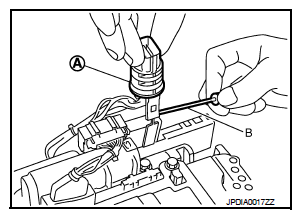

Remove A/T assembly connector (A) from the control valve&TCM using a flat-bladed screwdriver (B).
Disconnect TCM harness connector.

CAUTION: Be careful not to damage connector.

Fig 9: Removing A/T Assembly Connector

Courtesy of NISSAN MOTOR CO., U.S.A.
