Removal and Installation: Installation
Note the following, and install in the reverse order of removal.
CAUTION:
- Be careful not to damage connector when installing any connector.
- Never reuse A/T assembly connector.
- Apply ATF to O-ring of A/T assembly connector.
- Never reuse drain plug and drain plug gasket. In addition, install new drain plug and drain plug gasket after adjustment of A/T fluid filling.
- Refer to the following when installing the control valve&TCM to transmission case.
CAUTION:

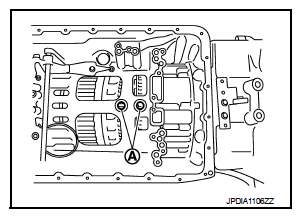

- Make sure that turbine revolution sensor securely installs input speed sensor holes (A).
- Hang down output speed sensor harness toward outside so as not to disturb installation of the control valve&TCM.
- Adjust A/T assembly harness connector of the control valve&TCM to terminal hole of transmission case.

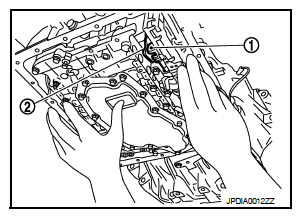

- Assemble it so that manual valve (1) cutout is engaged with manual plate (2) projection.

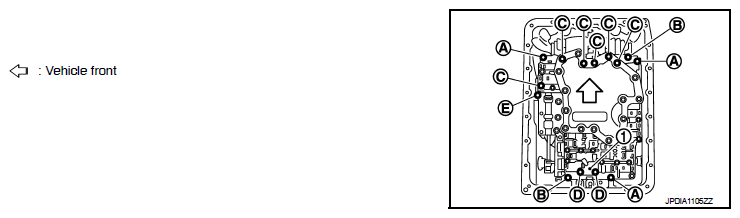

- Install bolts and clip (1) to the control valve&TCM. Tighten bolt (E) to the specified torque before tightening the other than bolts.BOLT SPECIFICATION
Bolt symbol Length mm (in) Number of bolts A 43 (1.69) 3 B 40 (1.57) 2 C 54 (2.13) 6 D 50 (1.97) 2 E(1) 50 (1.97) 1 (1) Reamer bolt - Refer to the following when installing oil pan to transmission case.
CAUTION:- Clean foreign materials (gear wear particles) that adhere on the inside of the oil pan and on the magnet, and then assembly.
- Completely remove all moisture, oil and old gasket, etc. from oil pan gasket mounting surface of transmission case and oil pan.
- Never reuse oil pan gasket and oil pan mounting bolts.
- Install oil pan gasket in the direction to align hole position.
- Tighten the oil pan mounting bolts to the specified torque in the numerical order as shown in the figure after temporarily tightening them.
