Infiniti
>>
2011
>>
EX35 Base, AWD
>>
Repair and Diagnosis
>>
Suspension
>>
Wheel Alignment
>>
Front Suspension - AWD
>>
Removal And Installation
>>
Front Suspension Member
>>
Exploded View
Exploded View

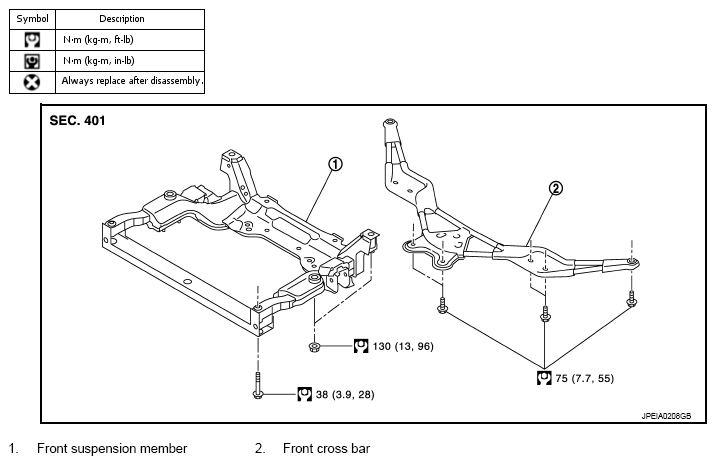

Fig 1: Front Suspension Member Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols in the figure.
