AWD : Exploded View: Disassembly

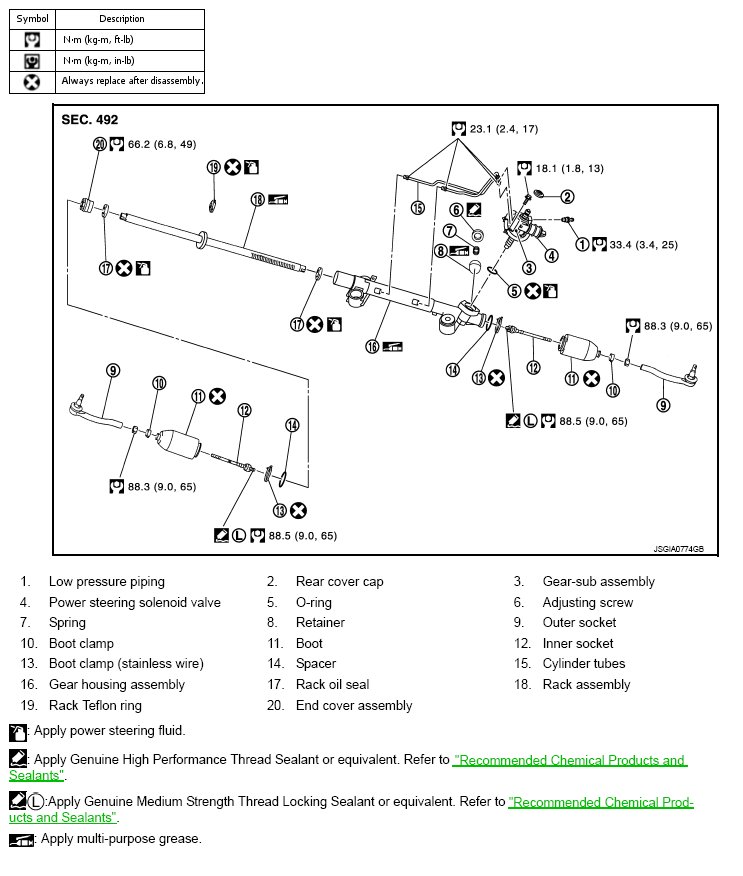

Fig 1: Disassembled View Of Steering Gear And Linkage with Torque Specifications
G07165858Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.
