WITH ELECTRIC MOTOR : Exploded View

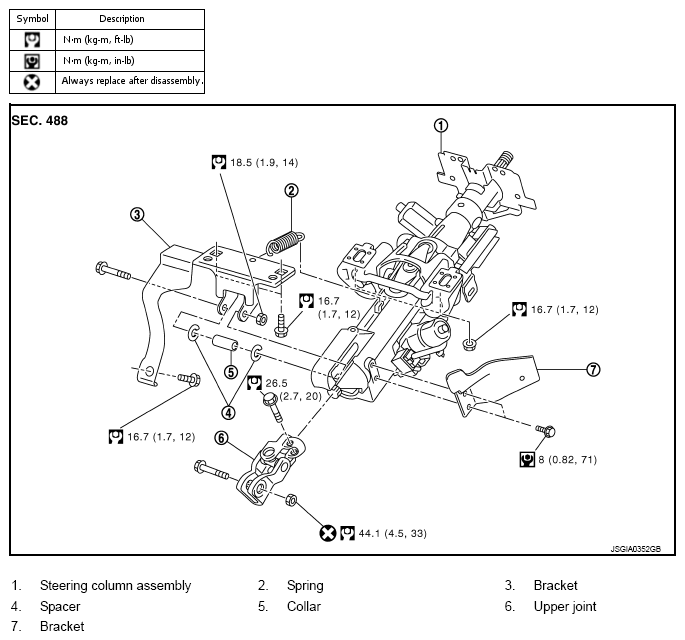

Fig 1: Steering Column Replacement Components With Torque Specifications (With Electric Motor)
G07165811Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
