SRS Air Bag System
>>
Component Parts Location
Component Parts Location

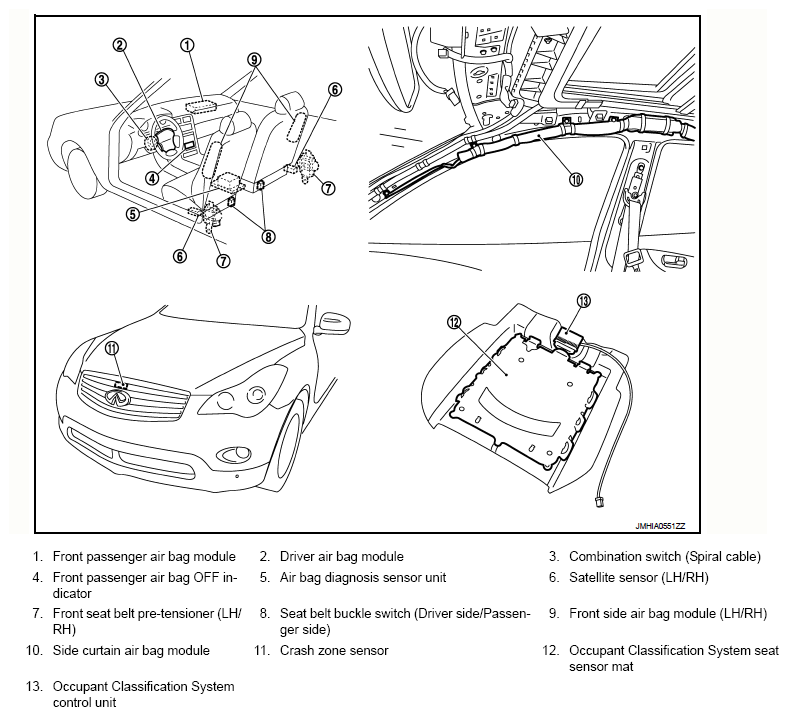

Fig 1: Identifying SRS Air Bag System Components Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
