Removal and Installation: Installation

WARNING: This page is about a different car, the 2008 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.

CAUTION:

Do not use old TORX bolts after removal; replace with new bolts.
Fix the driver air bag module harness to the harness fixing hook (A).
Tighten the TORX bolts after completely adjusting the centers of fixing holes on the driver air bag module side and the steering wheel side. If the holes are misaligned, the bolt threads are damaged and the module is not installed securely.

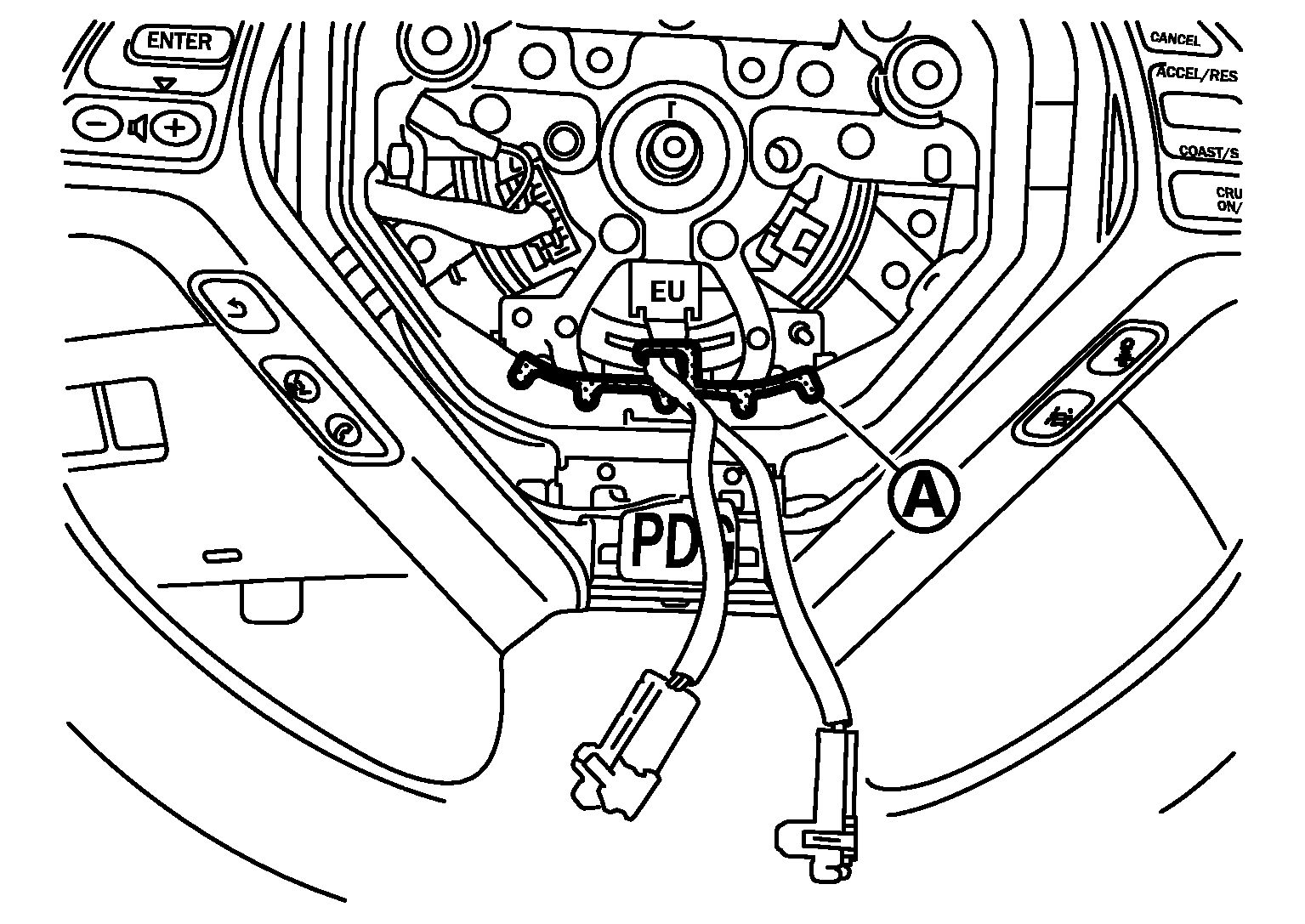

Fig 1: Identifying Caution - Fix Driver Air Bag Module Harness To Harness Fixing Hook
Courtesy of NISSAN MOTOR CO., U.S.A.
In the case that a malfunction is detected by the air bag warning lamp, after reparation or replacement of the malfunctioning parts, reset the memory by self-diagnosis or by the CONSULT-III.
After the work is completed, check that no system malfunction is detected by air bag warning lamp. Refer to DIAGNOSIS DESCRIPTION .
