Exploded View

WARNING: This page is about a different car, the 2008 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.

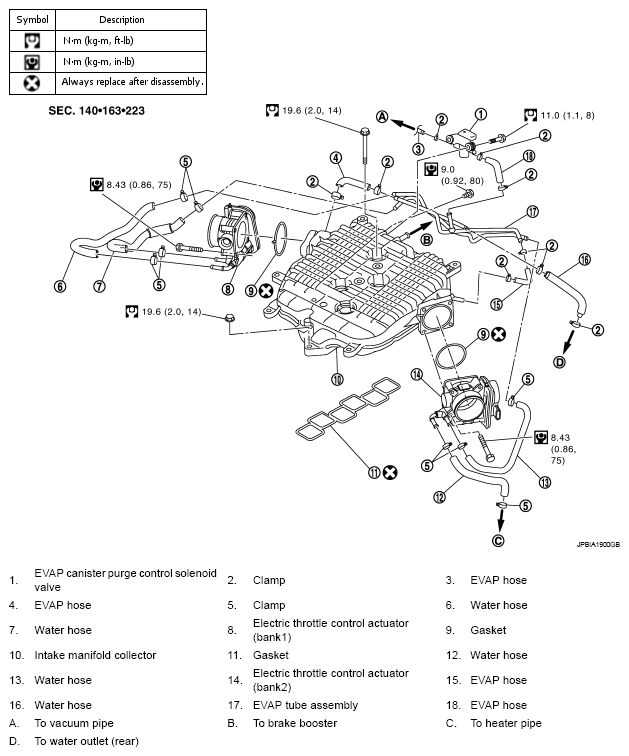

Fig 1: Exploded View Of Intake Manifold Collector Replacement Components With Torque Specifications
G05725935Courtesy of NISSAN MOTOR CO., U.S.A.
