Home >> Infiniti >> 2011 >> EX35 Base, AWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control System - VDC/TCS/Abs >> VDC/TCS/Abs >> System Description >> Abs >> Component Parts Location

Component Parts Location

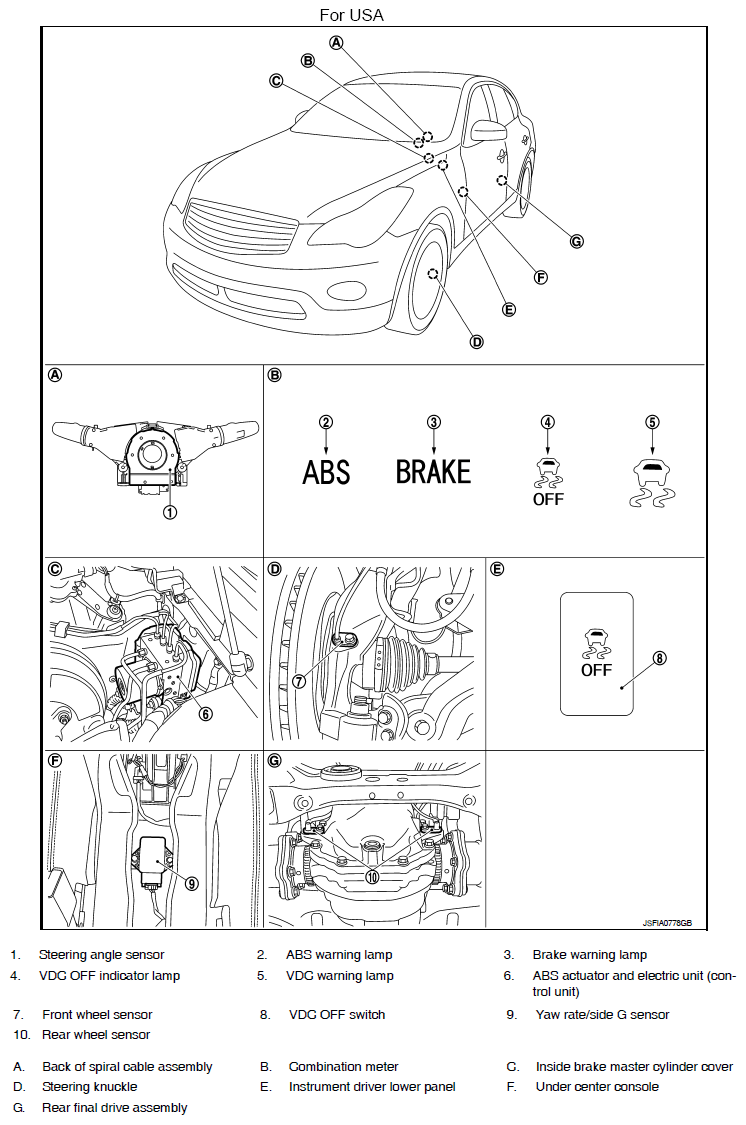

Fig 1: Identifying ABS Components Location (For USA)
G07165751Courtesy of NISSAN MOTOR CO., U.S.A.

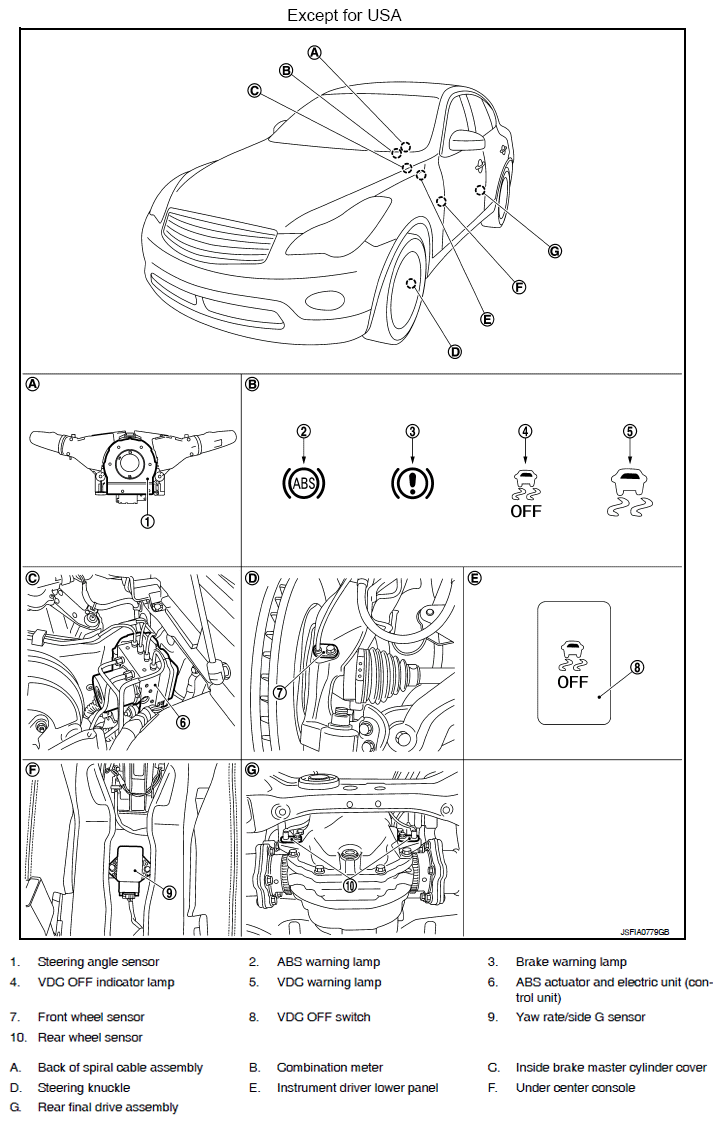

Fig 2: Identifying ABS Components Location (Except USA)
G07165752Courtesy of NISSAN MOTOR CO., U.S.A.
