Disassembly and Assembly: Components

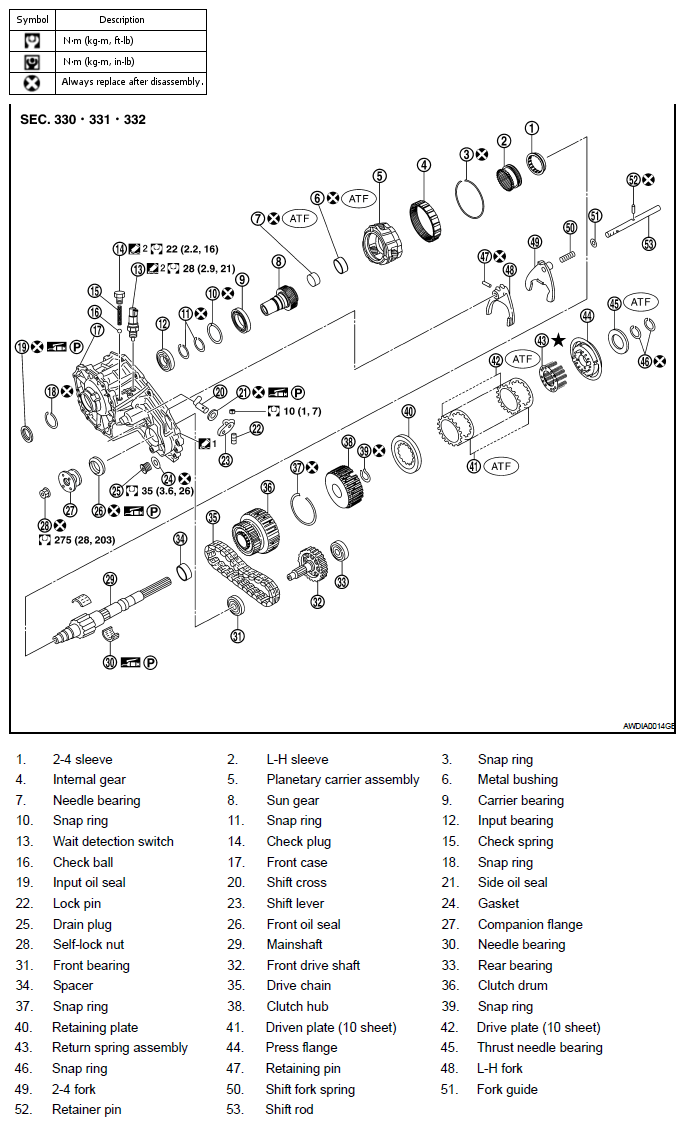

Fig 1: Transfer Assembly Replacement Components With Torque Specifications (1 Of 2)
G06316682Courtesy of NISSAN MOTOR CO., U.S.A.

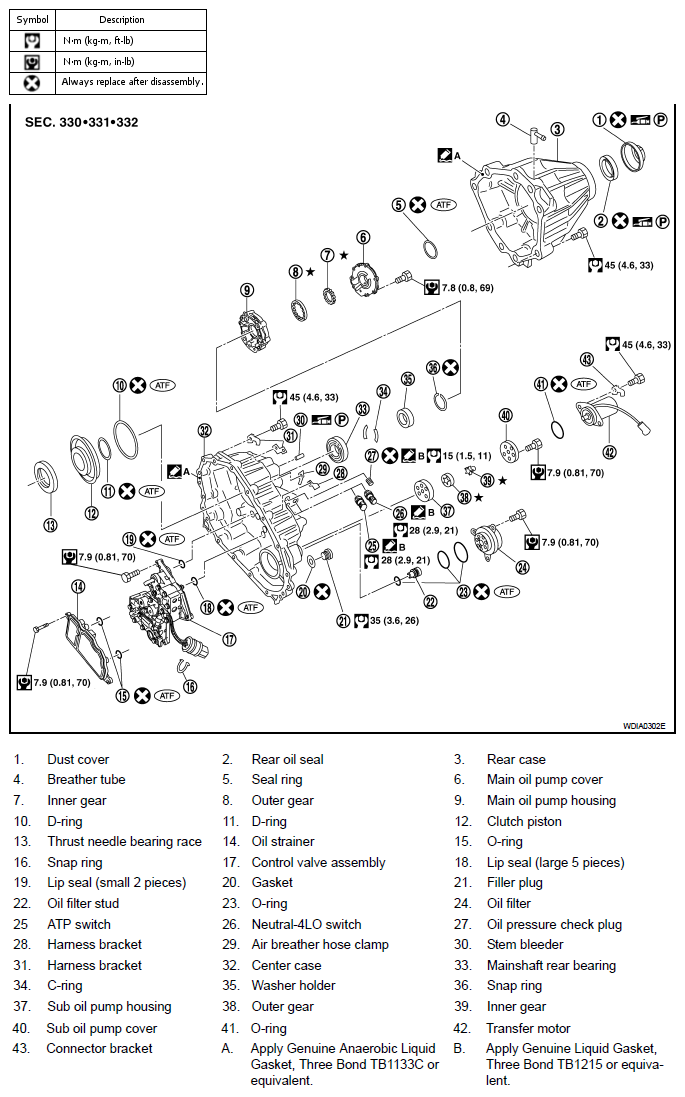

Fig 2: Transfer Assembly Replacement Components With Torque Specifications (2 Of 2)
G06316683Courtesy of NISSAN MOTOR CO., U.S.A.
