Timing Chain: Component

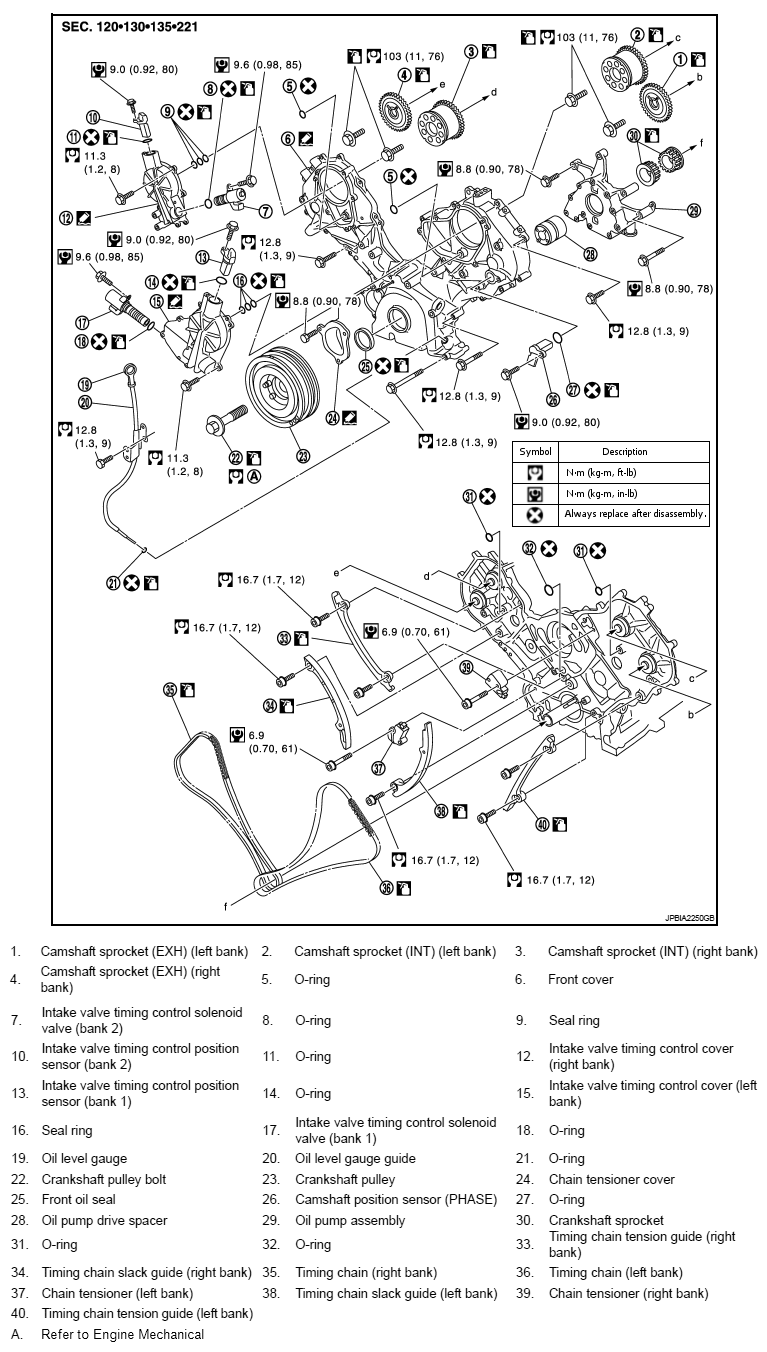

Fig 1: Timing Chain Replacement Components With Torque Specifications

G06305206

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to COMPONENT for symbols above.
