Television Display: Removal

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
- Some systems need to be initialized after the cable is reconnected (see INITIALIZATION ).
- After the ignition switch is turned OFF, the navigation system requires approximately 90 seconds to record various types of memory and settings. As a result, after turning the ignition switch OFF, wait 90 seconds or more before disconnecting the cable from the negative (-) battery terminal.
REMOVE ROOM NO. 1 LIGHT ASSEMBLY
1. Detach the 4 clips and remove the light.

  Fig 1: Identifying Light Assembly Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TELEVISION DISPLAY ASSEMBLY
1. Disconnect the connector.
2. Remove the 4 bolts.
3. Detach the 2 clips and 2 claws, and remove the television display.
REMOVE ROOF HEADLINING ASSEMBLY (for CrewMax)
1. Remove the roof headlining (see REMOVAL ).
REMOVE TELEVISION DISPLAY BRACKET
1. Remove the 4 bolts.
2. Detach the clip and 2 claws, and remove the bracket.

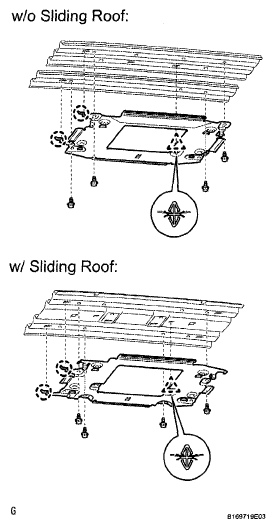

  Fig 3: Identifying Television Display Bracket Bolts, Clip And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
