Unlock Warning Switch: Inspection
WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

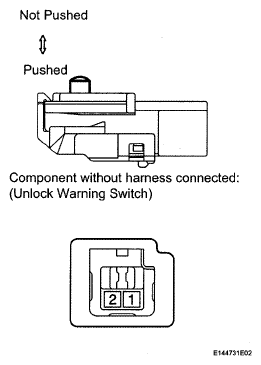

- INSPECT UNLOCK WARNING SWITCH ASSEMBLY
- Measure the resistance according to the value(s) in the table below.
Standard resistance
UNLOCK WARNING SWITCH ASSEMBLY STANDARD RESISTANCE SPECIFICATIONTester Connection Switch Condition Specified Condition 1 - 2 Not pushed 10 kΩ or higher Pushed Below 1 Ω If the result is not as specified, replace the unlock warning switch assembly.
- Measure the resistance according to the value(s) in the table below.
