Parts Location

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

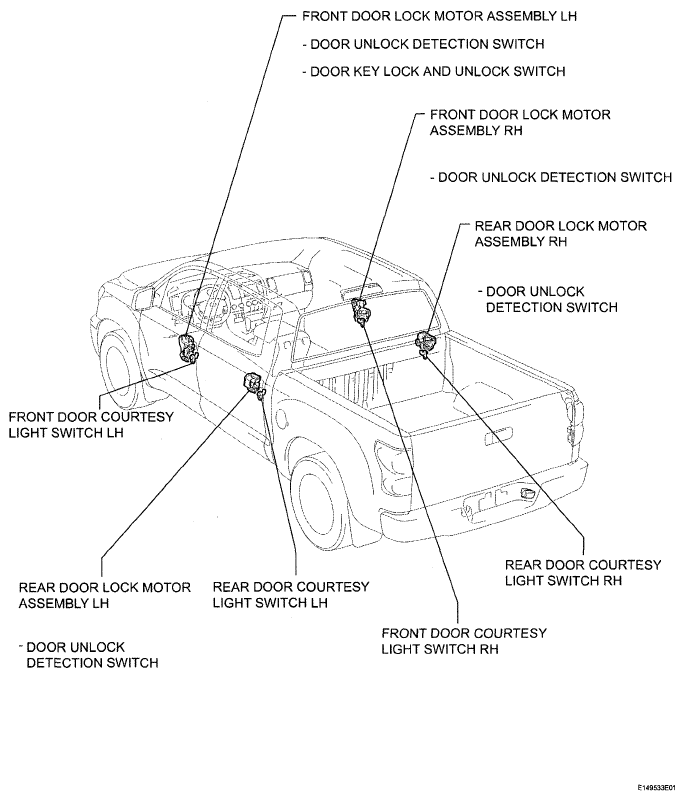

Fig 1: Identifying Location Of Power Door Lock Control System Components (1 Of 2)
G05161022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

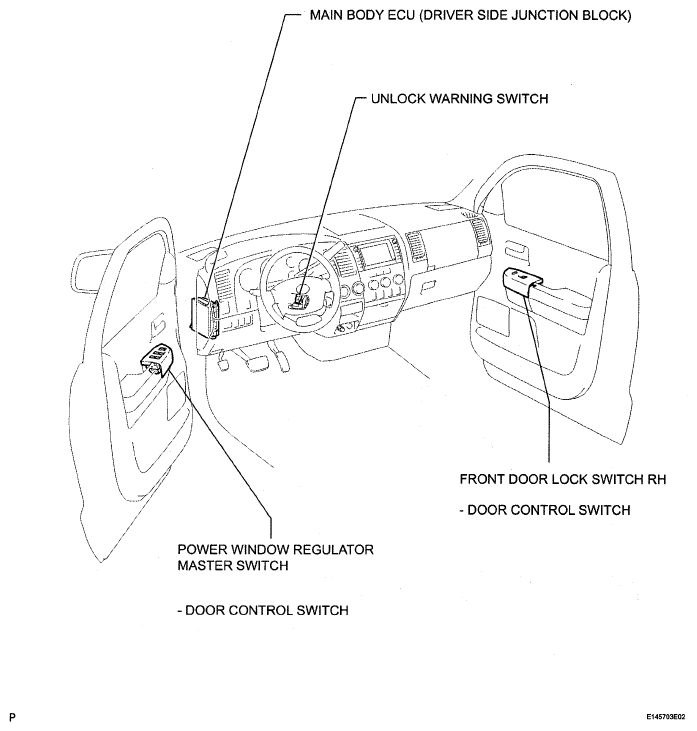

Fig 2: Identifying Location Of Power Door Lock Control System Components (2 Of 2)
G05161023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
