Door Control Switch Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

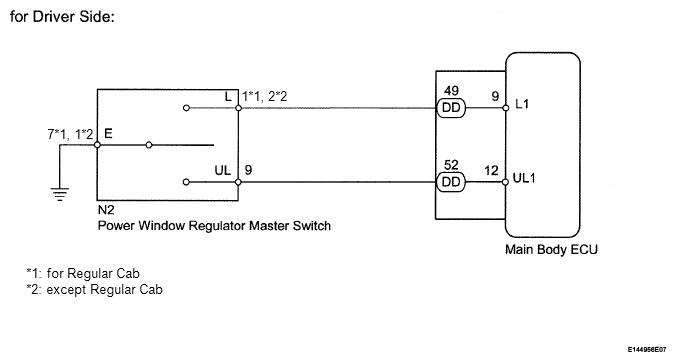

Fig 1: Door Control Switch (Drive Side) - Wiring Diagram
G05161062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

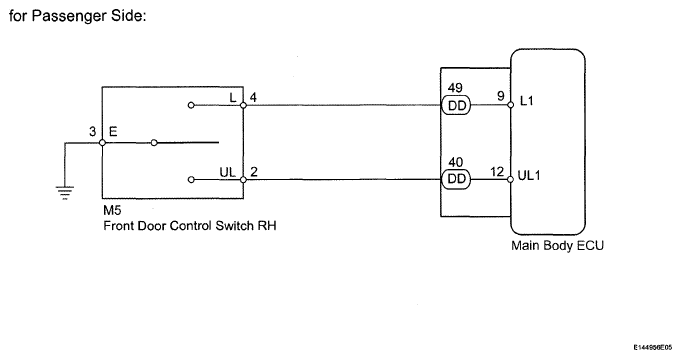

Fig 2: Door Control Switch (Passenger Side) - Wiring Diagram
G05161063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
