Home >> Infiniti >> 2010 >> M45 Base >> Repair and Diagnosis >> Engine Mechanical >> Exhaust System >> Service Information >> Exhaust System >> Component

Exhaust System: Component

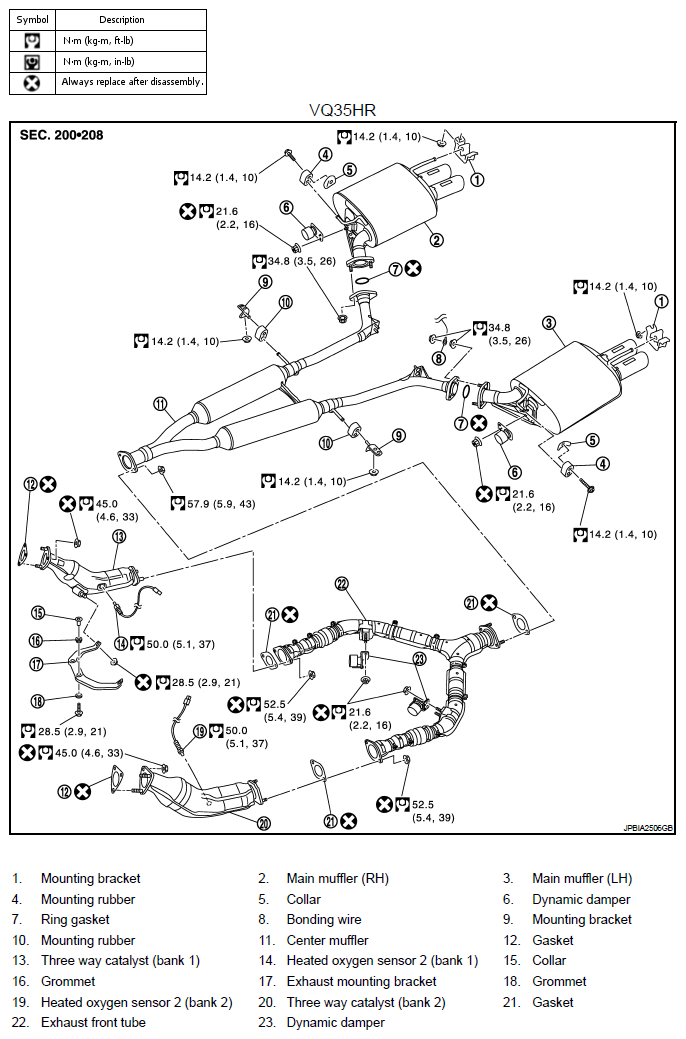

Fig 1: Exploded View Of Exhaust System - VQ35HR With Torque Specifications
G06307133Courtesy of NISSAN MOTOR CO., U.S.A.

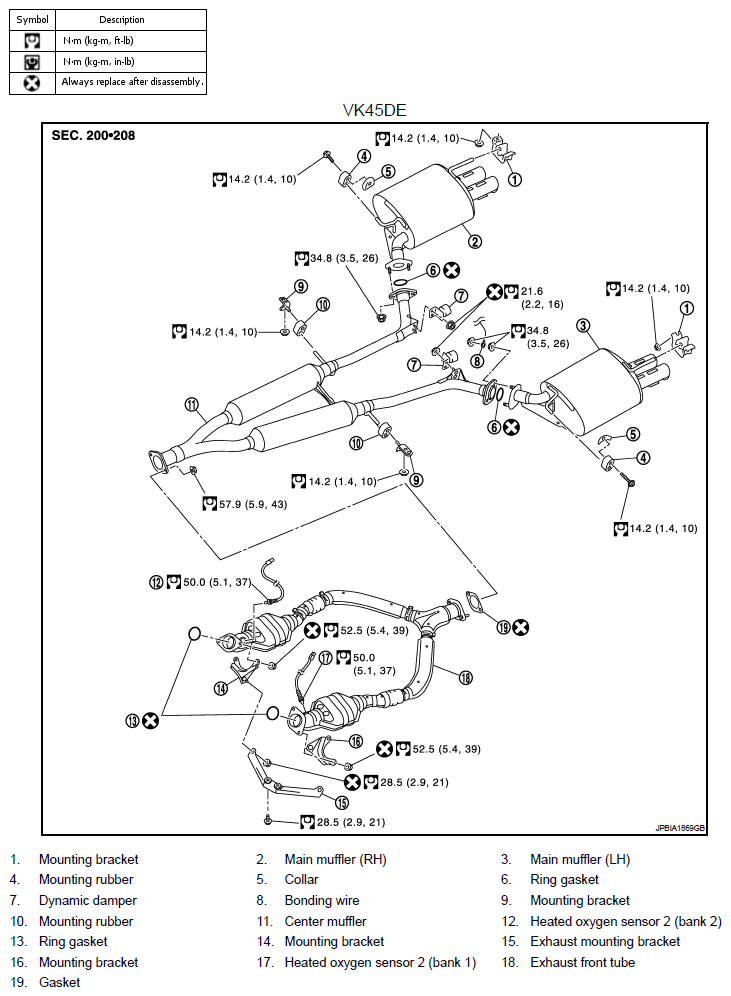

Fig 1: Exploded View Of Exhaust System - VK45DE With Torque Specifications
G06307135Courtesy of NISSAN MOTOR CO., U.S.A.
