Fuel Injector And Fuel Tube: Component

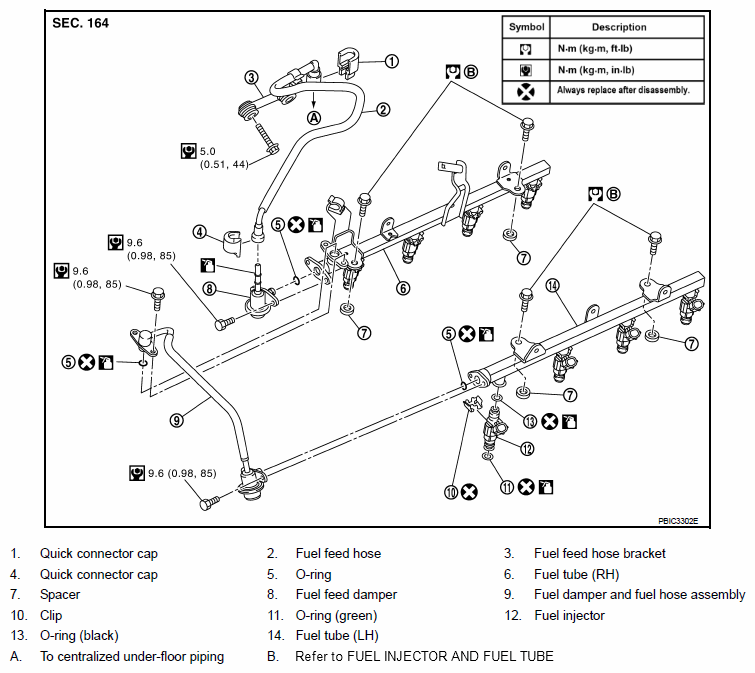

Fig 1: Fuel Injector And Fuel Tube Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

• Refer to COMPONENT for symbols above.
  CAUTION: Never remove or disassemble parts unless instructed as shown above.
