Service Information: Radiator: Component

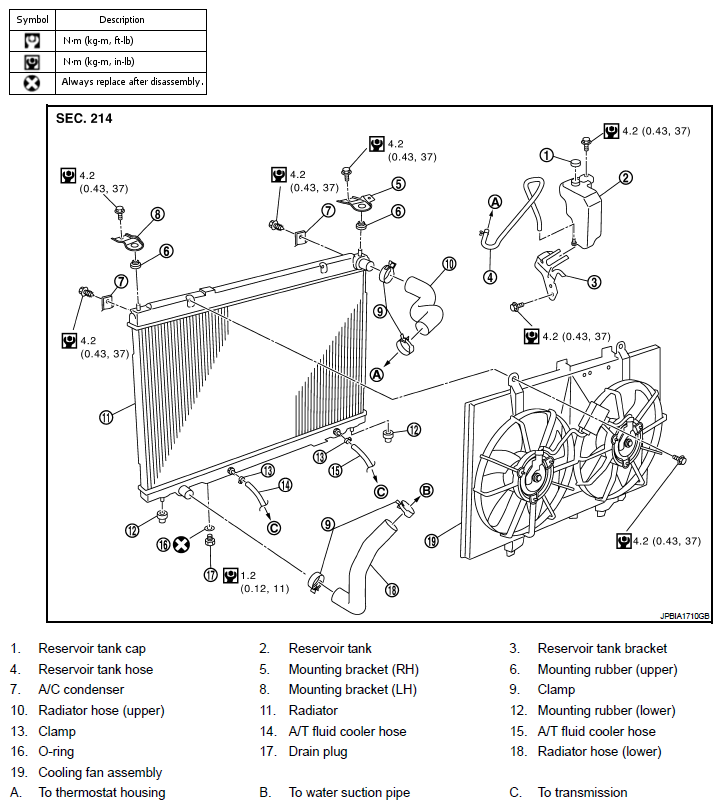

Fig 1: Exploded View Of Radiator With Torque Specifications

G06307077

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to Component for symbols above.
