System Table

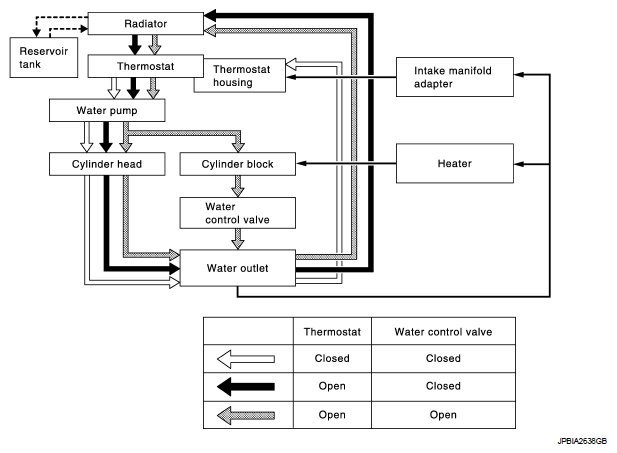

Fig 1: Engine Cooling System Schematic Diagram

G06307070

Courtesy of NISSAN MOTOR CO., U.S.A.
