Rear Window Glass
>>
Exploded View
Exploded View

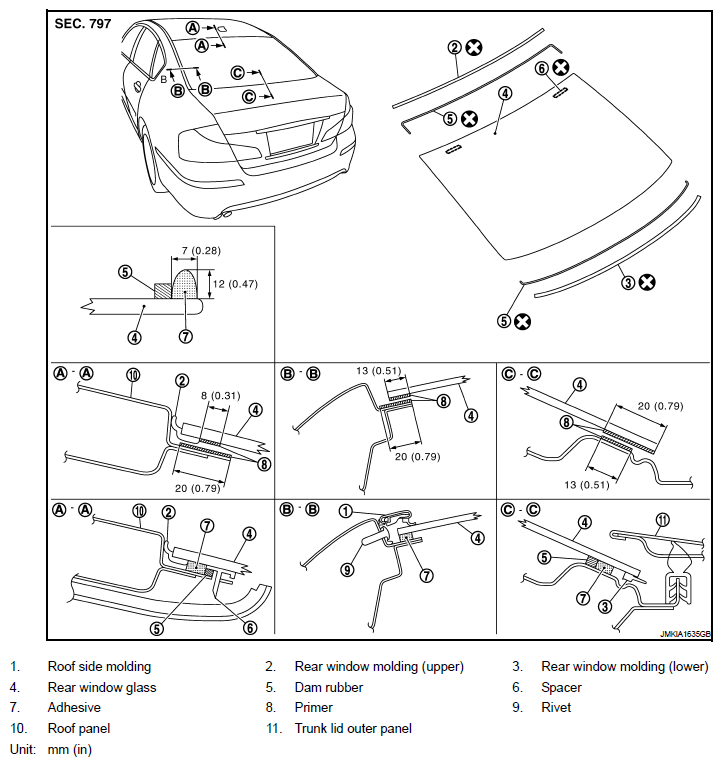

Fig 1: Identifying Rear Window Glass Adhesive Dimensions
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENT
" for symbols in the figure.
