Front Carrier, Input Clutch, Rear Internal Gear: Components

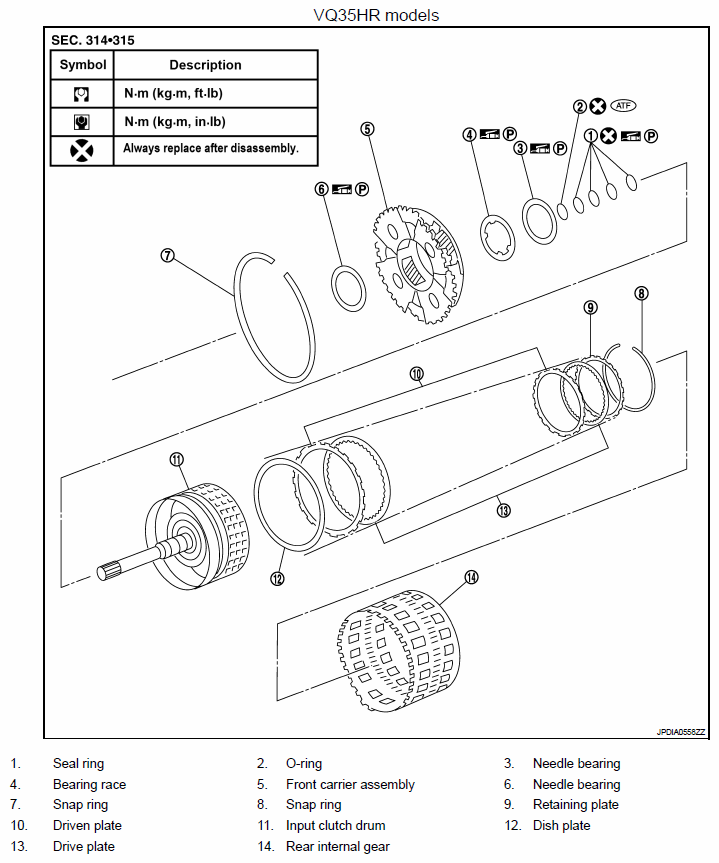

Fig 1: Identifying Front Carrier, Input Clutch, Rear Internal Gear Components (VQ35HR Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to General Information to make sure icons (symbol marks) shown above. Refer to COMPONENT .

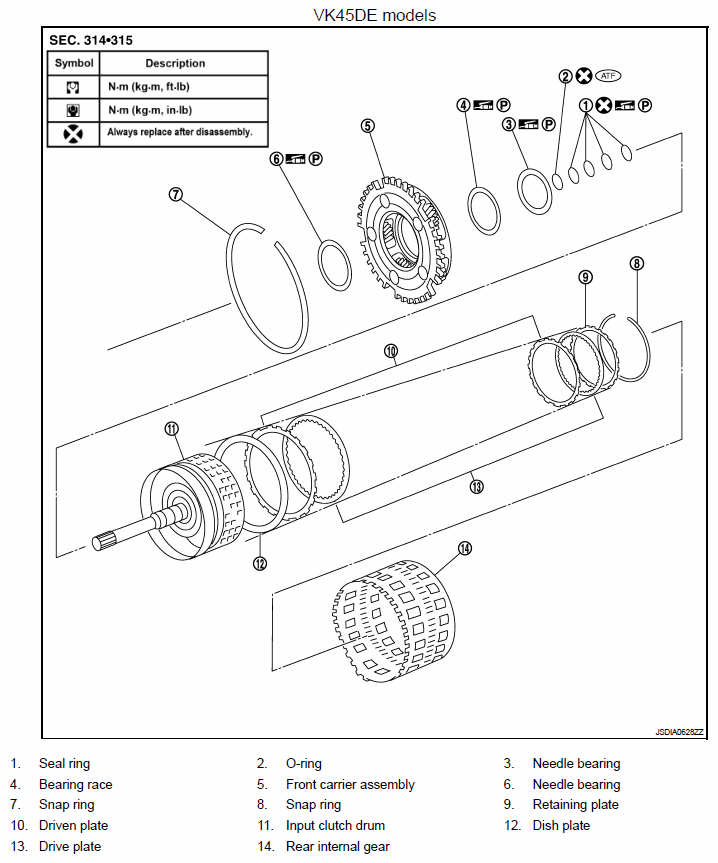

Fig 2: Identifying Front Carrier, Input Clutch, Rear Internal Gear Components (VK45DE Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to General Information to make sure icons (symbol marks) shown above. Refer to COMPONENT .
