Front Wiper And Washer System
>>
Disassembly and Assembly of Front Wiper Drive Assembly
>>
Notes
Disassembly and Assembly of Front Wiper Drive Assembly: Notes

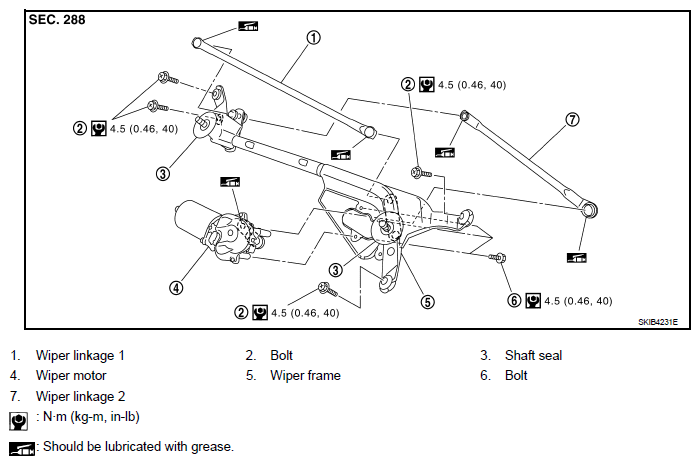

Fig 1: Disassembled View Of Front Wiper Drive Assembly With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
