Home >> Infiniti >> 2010 >> M35 Base >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - System And Component Testing >> Symptom Diagnosis >> Engine Control System Symptoms >> Symptom Table >> System - Engine Mechanical & Other

System - Engine Mechanical & Other

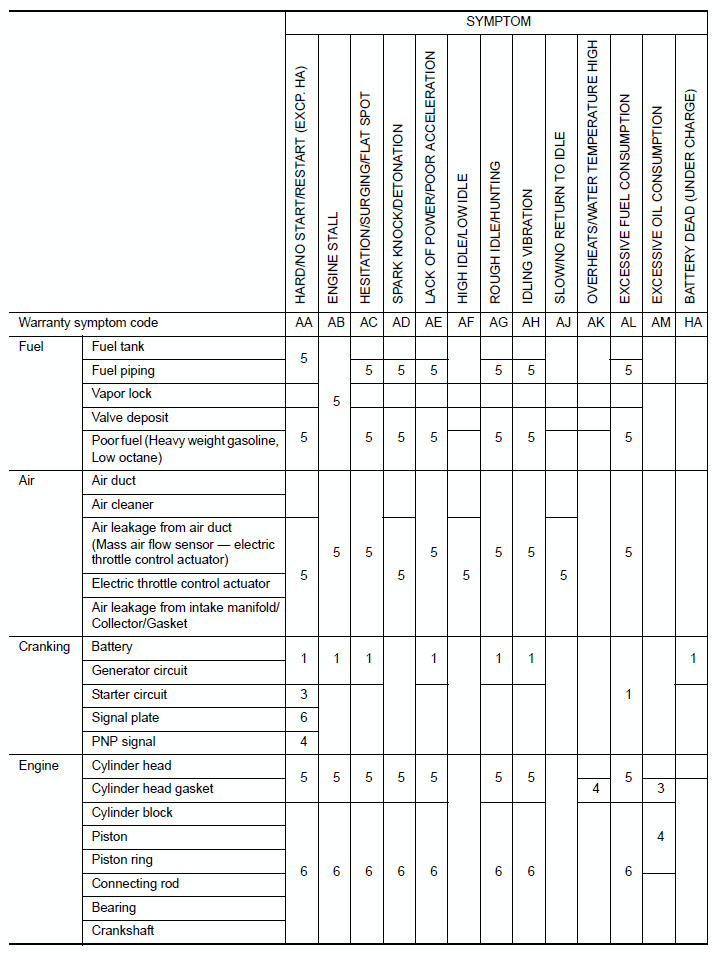

Fig 1: System - Engine Mechanical & Other (1 Of 2)
G06306886Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: System - Engine Mechanical & Other (2 Of 2)
G06306887Courtesy of NISSAN MOTOR CO., U.S.A.
