Wiring Diagram - ENGINE CONTROL SYSTEM -

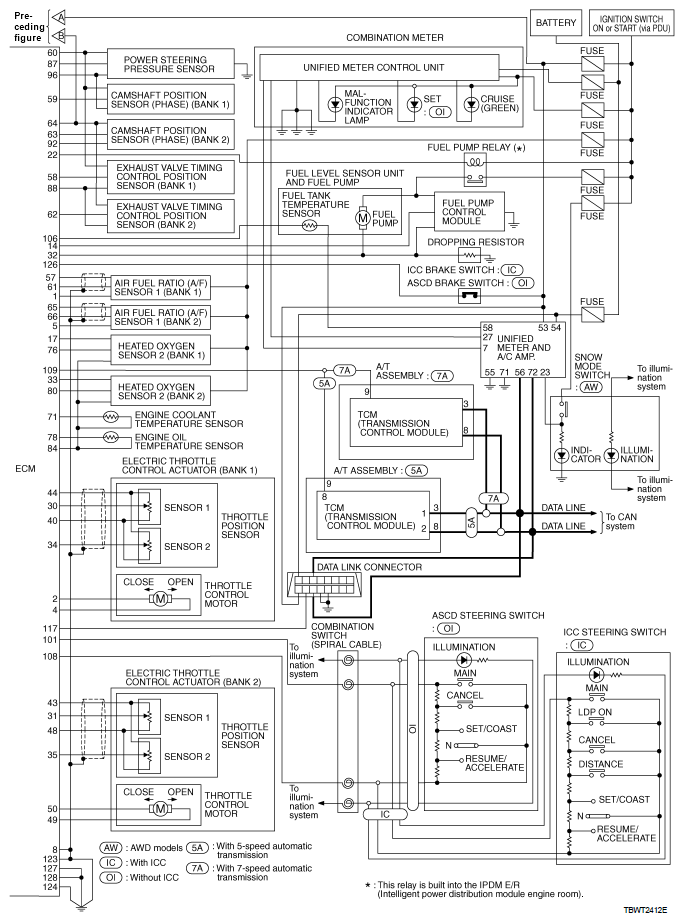

Fig 1: Engine Control System - Wiring Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

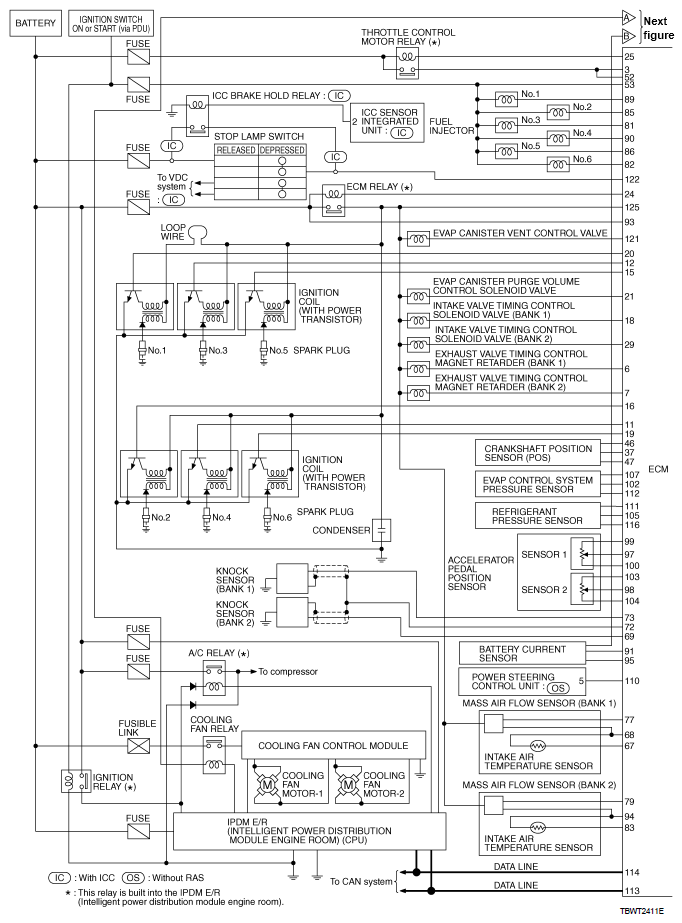

Fig 2: Engine Control System - Wiring Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
