DTC P1233, P2101: Electric Throttle Control Function: Wiring Diagram

NOTE: For PG-Power, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

Fig 1: EC-ETC1B1-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

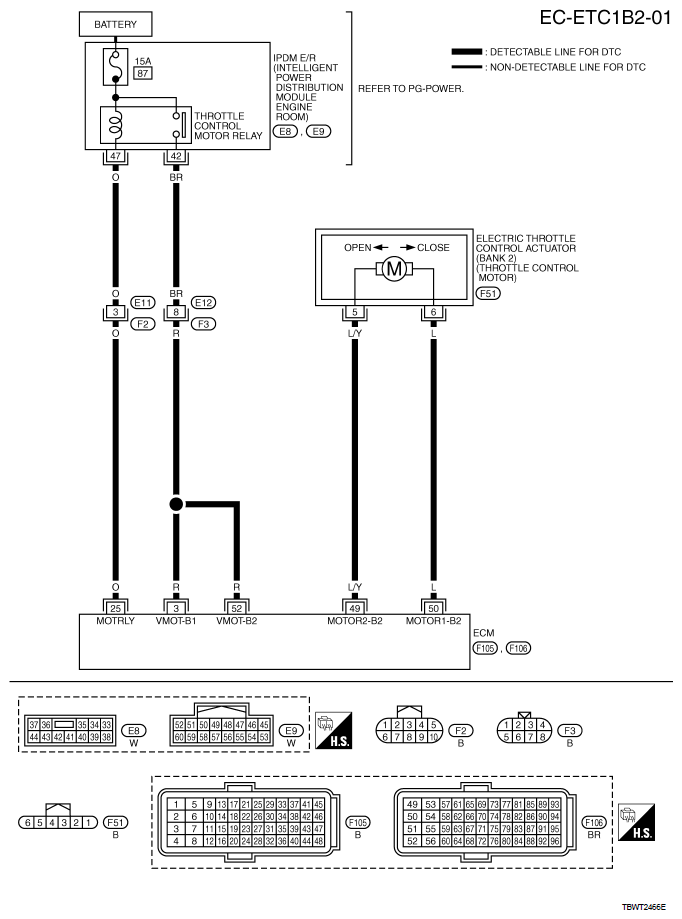

Fig 2: EC-ETC1B2-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
